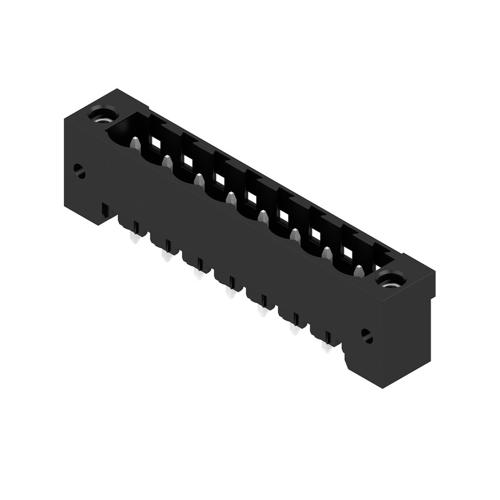

Weidmuller 1148650000 Male Header - 320 Volt - 8 Pole
Normally In Stock
Code: 188736
Weidmuller 1148650000 - Male Header - Black - IP20 - 320 Volt - 8 Pole - CuMg - 5.08 mm Pitch (MUST BUY IN PACKS OF 36) *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships within 4 weeks. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$4.31
Sale Price
$3.59
MUST BUY IN PACKS OF 36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Weidmuller 1148650000 - Weidmuller's BL/SL 5.08 series, featuring a pitch of 5.08mm (0.200 inch), is the renowned plug-in system that offers users an extensive range of options. With its versatility and compatibility, this series provides a pluggable solution for virtually every application, making it a trusted choice for reliable and efficient connections in various industries.
Specifications
Connector Color
Black
Connector protection
IP20
Component
PCB Connector
Manufacturer
Weidmuller
Connector Numbers
8 Pole
Sub Component
Male Header
Connector Material
Cumg
Connector Voltoltage
320 Volt
Features

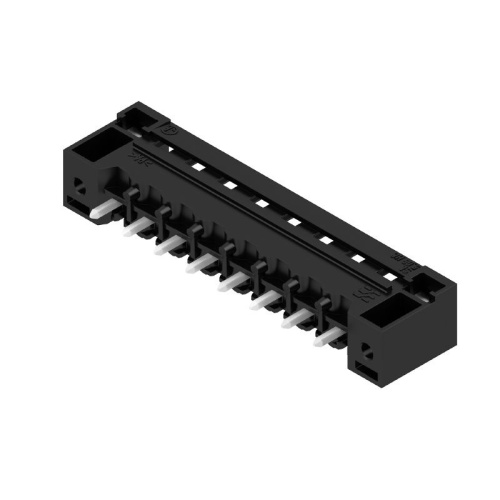

Pin headers in glass-fibre-reinforced plastic with straight wire outlet
optimised for wave soldering.
The flange variant (F) can be screwed onto the respective counter piece or the circuit board.
There is no need for an extra screw to connect the circuit board when the solder flange (LF) version is used.
This also protects the solder points from mechanical strain.
All pin headers can be manually coded or ordered pre-coded.
HC = High Current.
