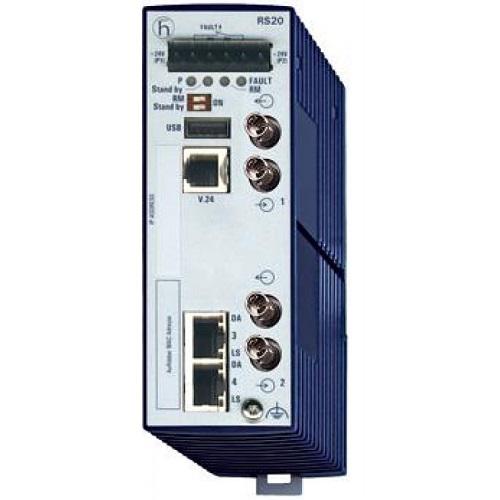

Hirschmann 943434066 RS20-0400M4M4SDAE
Normally In Stock
Code: 18613
Hirschmann 943434066 RS20-0400M4M4SDAE Mananaged Industrial Ethernet Rail Switch with 4 ports including 2 Fast Copper ports
Condition: New
Usually ships Same Day or Next Day$2739.70
Sale Price
$2283.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hirschmann 943434066 RS20-0400M4M4SDAE Managed Switch with 2 RJ45 Fast Copper ports and 2 Fiberoptic Multimode ST uplink ports . Operating Voltage of 9.6-60 VDC & 18-30 VAC. Software Layer 2 Enhanced and fanless design with Enhanced management. DIN rail mount. Operating Temperature of 32F-140F. Approvals CE, cUL508, ISA12.12.01, Class 1 Div 2.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 ST Multi Mode
Switch Voltage Input
12 VDC
Switch Voltage Input
24 VAC
Switch Management
Managed
Switch POE Ports
No POE Ports
Switch Total Ports
4
Switch Copper Ports Fast (100 Mbps)
2 RJ45 Ports
Switch All Ports
2 Fast Copper RJ45-2 Fast Fiber ST Multi
Manufacturer
Hirschmann
Line
RS20
Component
Managed Ethernet Switch
Features
Available in 4/8/9/16/17/24 and 25x100 Mbps ports
Fully managed (web, SNMP and CLI) – VLAN, IGMP snooping (multicast filtering), port mirroring, port control, port security, link alarms, broadcast limiter, traffic diagnostics, ring redundancy and much more
Fiber ports are available in multimode and/or singlemode
Dual power inputs and fault relay
USB port for configuration backup/restore and fast device replacement
Std. 0°C to +60°C (–40°C to +70°C, conformal coating available)
Differentiator between similar switches listed is the firmware level/features. See bottom of page 5 (E is Enhanced, P is Professional)
