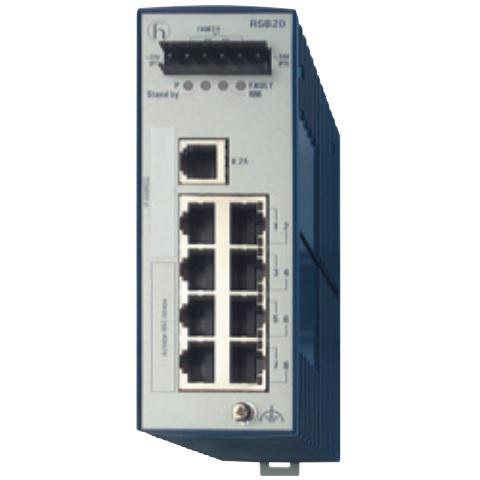

Hirschmann 942014001 RSB20-0800T1T1SAAB Managed Switch
Normally In Stock
Code: 18596
Hirschmann 942 014-001 RSB20-0800T1T1SAAB Mananaged Industrial Ethernet Rail Switch with 8 ports including 8 Fast Copper ports
Condition: New
Usually ships Same Day or Next Day$1646.38
Sale Price
$1371.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hirschmann 942014001 RSB20-0800T1T1SAAB Managed Switch with 8 RJ45 Fast Copper ports (with 2 of copper ports are uplink ports). Operating Voltage of 18-32 VDC. Software Basic: Diagnosis, HIPER-Ring. DIN rail mount. Operating Temperature of 32F-140F. Approvals CE, cUL508, ISA12.12.01, Class 1 Div 2. RSB20 family of Basic Switches support Fast Ethernet (10/100 BASE-TX, 100 BASE-FX) and offer both comprehensive management and redundancy modes as well as various different functions for convenient configuration and diagnostics. Furthermore, they meet all current industrial standards and have cUL508 and cUL1604 Class 1 Div2 approvals. Supplied in a rugged and compact housing, they can be mounted on tophat rails. Passive cooling (no fans) and a redundant 12/24VDC power supply add to ensure high operational safety. All configuration data can be saved and recalled, if required, though a serial interface connecting to the ACA 11 autoconfiguration adapter.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 8 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Management
Managed
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
8 RJ45 Ports
Switch All Ports
8 Fast Copper RJ45
Manufacturer
Hirschmann
Line
RSB20
Component
Managed Ethernet Switch
Features
Optimized cost/performance ratio
Ideal range of function for redundant networks
Various different models, from the 8TX port version up to a flexible type with 3 FE SFP uplink ports
Comprehensive redundancy features
Downloads
Hirschmann 942014001 Reference Manual CLI L2E.pdfHirschmann 942014001 Reference Manual CLI L2P.pdfHirschmann 942014001 Reference Manual GUI L2E.pdfHirschmann 942014001 Reference Manual GUI L2P.pdfHirschmann 942014001 Reference Manual Web-based Interface L2B.pdfHirschmann 942014001 Spec Sheet.pdfHirschmann 942014001 User Manual Basic Configuration L2E.pdfHirschmann 942014001 User Manual Basic Configuration L2P.pdfHirschmann 942014001 User Manual Redundancy Configuration L2E.pdfHirschmann 942014001 User Manual Redundancy Configuration L2P.pdfHirschmann 942014001 User Manual.pdf
