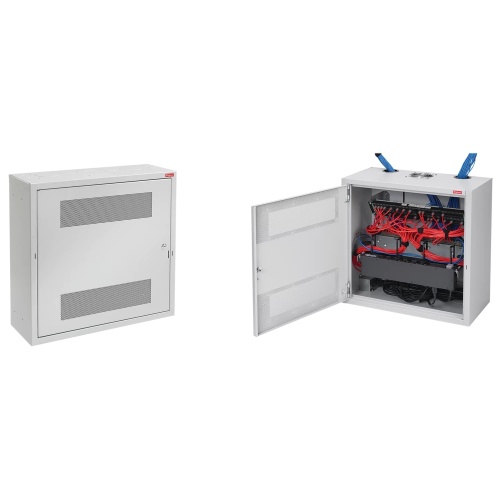

Hoffman DBS242412G 24"x24"x13.0" D-Box Network Cabinet Type 1

Hoffman DBS242412G 24"x24"x13.0" Wall Mount D-Box Network Cabinet Type 1 (DOES NOT INCLUDE BACK PANEL)

Normally In Stock! Order now!

Condition: New

Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)

Price: $1054.30

Sale Price: $875.88

Hoffman DBS242412G 24"x24"x13.0" D-Box Network Cabinet Type 1

Specifications
Enclosure Composition	Galvanized Steel
Enclosure knockouts	Includes Knockouts
Enclosure Hinge Type	Standard Hinge
Enclosure Latch Type	Quarter Turn
Enclosure Interior Color	Gray
Enclosure Depth	13"
Enclosure Lock Type	Keylocking
Rack Units	6
Enclosure Height	24"
Manufacturer	Hoffman
Enclosure Environment Rating	Indoor
Enclosure Door Type	Solid
Enclosure Mount Type	Wall Mount
Enclosure Width	24"
Component	Network Enclosure
Enclosure Number of Doors	1 Door
Enclosure NEMA Rating	NEMA Type 1
Enclosure Type	D-Box Network Cabinet

120-degree door opening for maximum equipment access
Knockouts for 4-inch fan on top and bottom of enclosure
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure, two 3-inch cable entry knockouts on back
Multiple cable tie-down points on back of enclosure
Reversible door fits flush to body with no exposed corners
Spring-loaded, self-retained hinge pins allow door removal
Quarter-turn latch with key lock
Flange around door opening protects interior
Patch panel 4U mounting angles rotate down for access
Bosses provided for mounting accessories such as cable spools
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
Bonding provision on door
Ground stud on body
