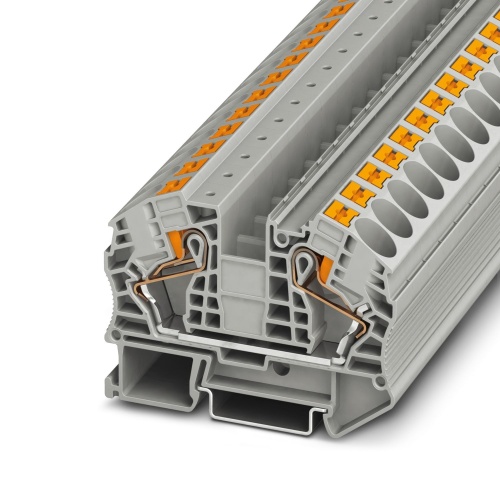

Phoenix Contact 3212138 Feed-through terminal block PT 16 N
Normally In Stock
Code: 18158
PT 16 N Phoenix Contact 3212138 Phoenix Contact PT 16 N. Terminal Block 10.2mm Gray Single through Push-In Connection 1000V, 90A, 4-20AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.92
Sale Price
$4.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212138 The feed-through terminal block has a nominal voltage of 1000 V and a nominal current rating of 76 A, accommodating two connections through push-in connection. The rated cross-section ranges from 0.5 mm2 to 25 mm2, with the mounting type being NS 35/7,5 or NS 35/15, while the block itself is gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-In Connection
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Tested for railway applications
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Downloads
Phoenix 3212138 CAD data International.dxfPhoenix 3212138 CAD data International.pdfPhoenix 3212138 CAD data International.stpPhoenix 3212138 CAD Drawing.zipPhoenix 3212138 Certification English.pdfPhoenix 3212138 Certification International.pdfPhoenix 3212138 Manufacturers declaration International-2.pdfPhoenix 3212138 Manufacturers declaration International-3.pdfPhoenix 3212138 Manufacturers declaration International-4.pdfPhoenix 3212138 Manufacturers declaration International-5.pdfPhoenix 3212138 Manufacturers declaration International.pdfPhoenix 3212138 Product Information English.pdfPhoenix 3212138 Safety note English.pdfPhoenix 3212138 Spec Sheet.pdfPhoenix 3212138 Tender Text English.zipPhoenix 3212138 User instructions for the Ex Area International.pdf
