Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 3101087 Knife-disconnect terminal block UDMTK 5-P/P
Normally In Stock
Code: 18125
UDMTK 5-P/P Phoenix Contact 3101087 Phoenix Contact UDMTK 5-P/P, Double Level Gray with Separate Knife Disconnects for each level Terminal Block (With Test Socket Screws) 6.2mm Single through screw connection, 400V, 10A, 12-24AWG (Sold in packs of 50). Not Bridgeable
Condition: New
Usually ships within 7-14 days. Call for ship time.$31.39
Sale Price
$26.16
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

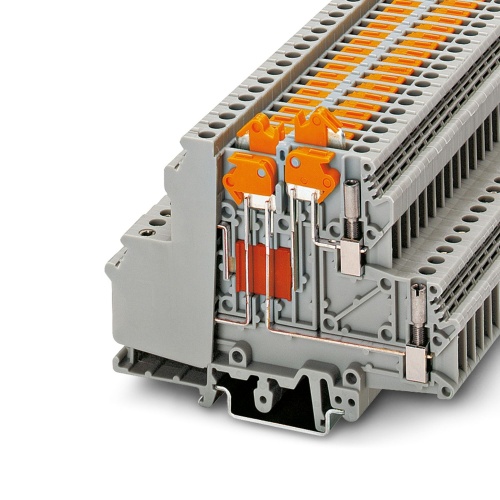

Phoenix Contact 3101087 The knife-disconnect terminal block features test socket screws for inserting test plugs and operates at 400V with a maximum current of 10A, divided into two levels. Connections are made via screw connections with rated cross-sections ranging from 0.2mm² to 4mm², and the block is mounted using options NS 35/7.5, NS 35/15, or NS 32, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Amperage
10 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Space-saving design just 6.2 mm wide
User-friendly disconnect knife operation
Closed housing of double-level terminal blocks
Downloads
Phoenix 3101087 CAD data International.dxfPhoenix 3101087 CAD data International.pdfPhoenix 3101087 CAD data International.stpPhoenix 3101087 CAD Drawing.zipPhoenix 3101087 Manufacturers declaration English.pdfPhoenix 3101087 Manufacturers declaration International-2.pdfPhoenix 3101087 Manufacturers declaration International.pdfPhoenix 3101087 Product Information English.pdfPhoenix 3101087 Safety note English.pdfPhoenix 3101087 Spec Sheet.pdfPhoenix 3101087 Tender Text English.zip
