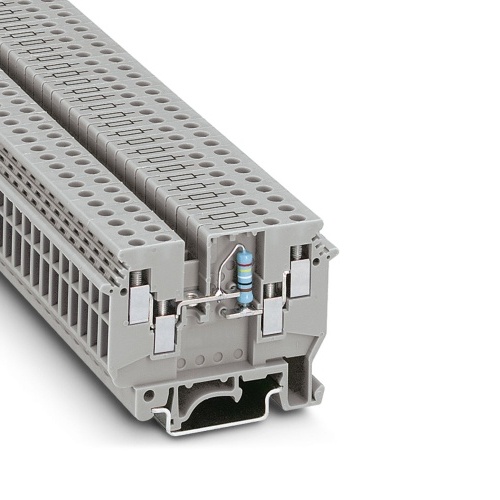

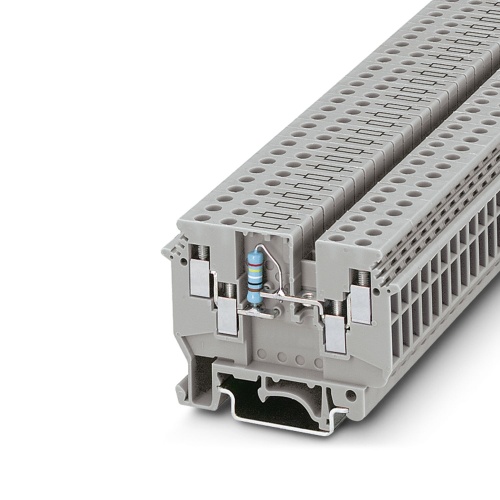

Phoenix Contact 2775249 Component terminal block UDK 4-DUR 249
Normally In Stock
Code: 18114
UDK 4-DUR 249 Phoenix Contact 2775249 Phoenix Contact UDK 4-DUR 249. Single Level Feed Through Component Terminal Block 6.2mm with voltage signal pick off. Gray, 630V, 32A, 10-24AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$20.82
Sale Price
$17.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2775249 The component terminal block features four connections with screw attachments and has a rated cross-sectional area of 4mm², spanning two levels across 0.2-6mm² sections, available in mounting types NS35/7.5, NS35/15, and NS32, with a gray coloration.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Voltage Rating
630 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Diode
With Diode
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
The four-conductor connection enables user-friendly wiring
The constant circuits common in process automation transmit the measured values as a load-independent current of 0 ... 20 mA
The lower level is assigned to the measuring line while the upper level is used for voltage pick-off via the 249 Ohm resistor
A voltage signal pick-off can be implemented in the measuring line using this terminal block, enabling the signal to be used as an analog signal for process computers
Downloads
Phoenix 2775249 CAD data International.dxfPhoenix 2775249 CAD data International.pdfPhoenix 2775249 CAD data International.stpPhoenix 2775249 CAD Drawing.zipPhoenix 2775249 Manufacturers declaration English.pdfPhoenix 2775249 Safety note English.pdfPhoenix 2775249 Spec Sheet.pdfPhoenix 2775249 Tender Text English.zip
