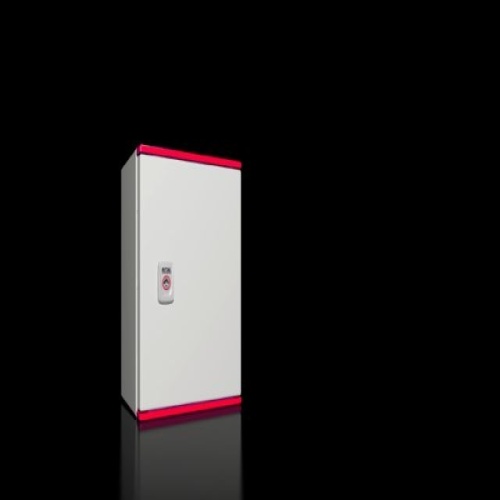

Rittal 1432000 AX Fiberglass-Reinforced Polyester enclosure without viewing window
Normally In Stock
Code: 181132
Rittal 1432000 AX Fiberglass-Reinforced Polyester Enclosures without viewing window, Type 1, 3R, 3RX, 4, 4X, 12, H: 13.8 " W: 9.84 " D: 5.91 "
Condition: New
Usually ships Same Day or Next DayALL RITTAL ORDERS THAT EXCEED 50 LBS WILL SHIP FREIGHT.
$406.19
Sale Price
$338.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Rittal 1432000 Wall-mounted Industrial Enclosure, AX fiberglass-reinforced polyester enclosures are ideal for outdoor applications. Numerous mounting domes in the enclosure provide individual interior configuration options in a 25 mm pitch pattern, e.g. with punched sections and rails., Height: 13.8 ", Width: 9.84 ", Depth: 5.91 "
Specifications
Enclosure Composition
Polyester
Enclosure Depth
5.91"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Rittal
Line
WM
Enclosure Width
9.84"
Enclosure Height
13.8"
Component
Non-Metallic Enclosure
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 1
Enclosure NEMA Rating
NEMA Type 3RX
Features

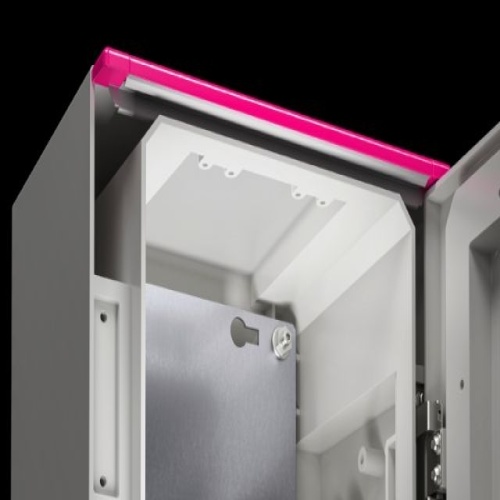

Supply Includes: Enclosure with hinged door, of all-round solid construction, 3 mm double-bit lock Door hinged on the right, may be swapped to the left Mounting plate Twin seal on the top and bottom edges of the door as integral rain protection strip
Note: If exposed to long-term UV radiation (sunlight) and rain, we recommend spray-finishing the surface with a PUR paint to avoid any visual impairments to the surface. Prices and delivery times on request.
Design: without viewing window
Assembly instructions: Interior installation screws are required to secure components inside the enclosure Components such as punched sections with mounting flanges may be attached on a 25 mm pitch pattern using the universal bracket
