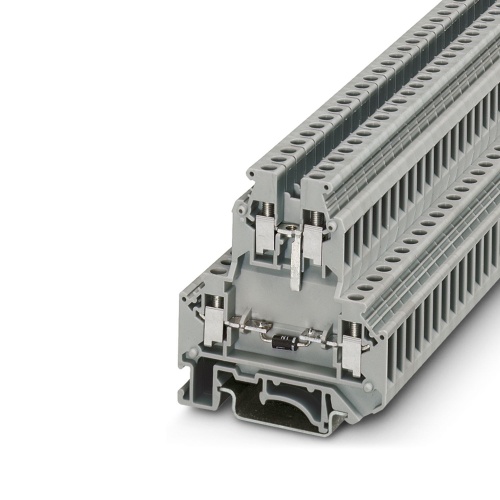

Phoenix Contact 2791029 Component terminal block UKK 5-DIO/UL-UR
Normally In Stock
Code: 18107

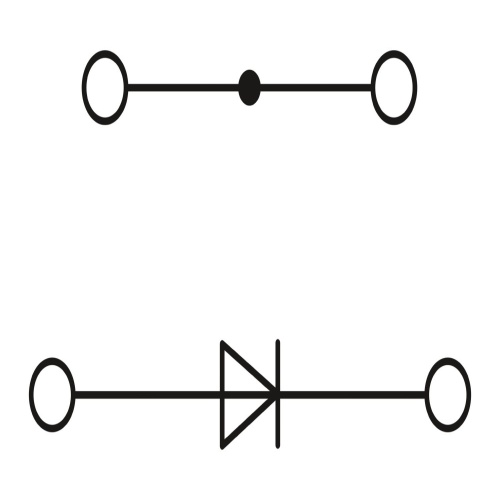

UKK 5-DIO/UL-UR Phoenix Contact 2791029 Phoenix Contact UKK 5-DIO/UL-UR. Double Level Feed Through Component Terminal Block 6.2mm with Integrated Diode conducting from bottom left to bottom right. Gray, up to 500V, 32A, 12-24AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$18.29
Sale Price
$15.24
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2791029 The component terminal block features a built-in diode with a maximum current rating of 0.5 A and four connection points that can be secured using screw connections. The cross-sectional area is rated for the first and second levels at 0.2 mm2-4 mm2, while the third level has a higher cross-sectional area. Various mounting options are available including NS 35/7.5, NS 35/15, and NS 32, with all parts featuring a gray color and a corresponding size of 4 mm2 for the rated cross section.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Diode
With Diode
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Double-level diode terminal blocks with various forms of wiring are available for a wide range of applications
Downloads
Phoenix 2791029 CAD data International.dxfPhoenix 2791029 CAD data International.pdfPhoenix 2791029 CAD data International.stpPhoenix 2791029 Manufacturers declaration English.pdfPhoenix 2791029 Manufacturers declaration International.pdfPhoenix 2791029 Safety note English.pdfPhoenix 2791029 Spec Sheet.pdfPhoenix 2791029 Tender Text English.zip
