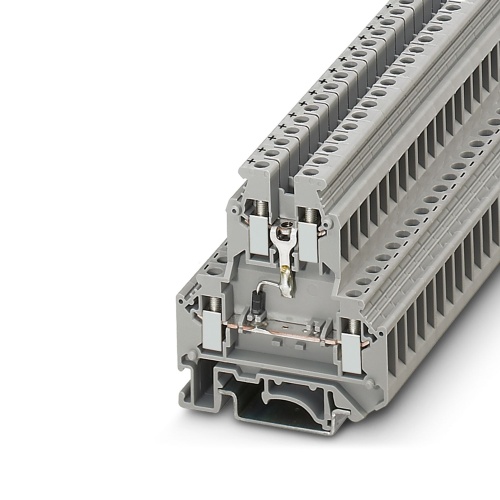

Phoenix Contact 2791016 Component terminal block UKK 5-DIO/O-U
Normally In Stock
Code: 18106

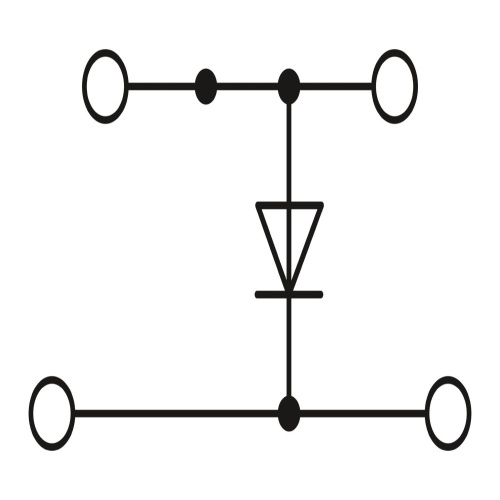

UKK 5-DIO/O-U Phoenix Contact 2791016 Phoenix Contact UKK 5-DIO/O-U. Double Level Feed Through Component Terminal Block 6.2mm with Integrated Diode conducting from top to bottom. Gray, up to 500V, 32A, 12-24AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$18.79
Sale Price
$15.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2791016 The component terminal block features an integrated diode with a nominal current capacity of 0.5 A and has four connections available for screw attachment, using cross sections ranging from 0.2 mm2 to 4 mm2, specifically designated as NS 35/7.5, NS 35/15, NS 32, and comes in a gray color with two levels of rated cross section: the first level being 0.2 mm2-4 mm2 and the second level also having the same range of cross sections.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Diode
With Diode
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Double-level diode terminal blocks with various forms of wiring are available for a wide range of applications
Downloads
Phoenix 2791016 CAD data International.dxfPhoenix 2791016 CAD data International.pdfPhoenix 2791016 CAD data International.stpPhoenix 2791016 CAD Drawing.zipPhoenix 2791016 Manufacturers declaration English.pdfPhoenix 2791016 Manufacturers declaration International.pdfPhoenix 2791016 Safety note English.pdfPhoenix 2791016 Spec Sheet.pdfPhoenix 2791016 Tender Text English.zip
