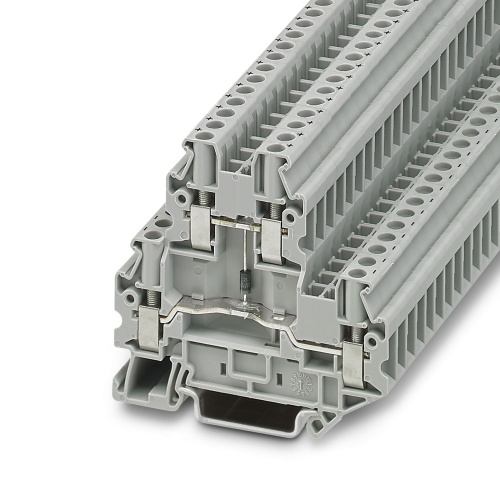

Phoenix Contact 3046809 Component terminal block UTTB 4-DIO/O-U
Normally In Stock
Code: 18103

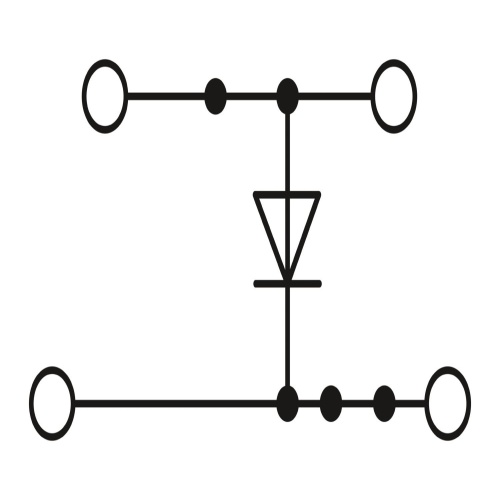

UTTB 4-DIO/O-U Phoenix Contact 3046809 Phoenix Contact UTTB 4-DIO/O-U. Double Level Feed Through Component Terminal Block 6.2mm with Integrated Diode conducting from top to bottom. Gray, 800V, 36A, 10-26AWG bridgeable on both Levels (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.52
Sale Price
$6.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046809 The component terminal block features an integrated 1N4007 diode and has a nominal current rating of 0.5 A, allowing for screw connections with cross-sectional areas ranging from 0.14 mm2 to 6 mm2, and is mounted using the NS 35/7.5 or NS 35/15 types in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Diode
With Diode
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3046809 CAD data International.dxfPhoenix 3046809 CAD data International.pdfPhoenix 3046809 CAD data International.stpPhoenix 3046809 Manufacturers declaration English.pdfPhoenix 3046809 Manufacturers declaration International.pdfPhoenix 3046809 Safety note English.pdfPhoenix 3046809 Spec Sheet.pdfPhoenix 3046809 Tender Text English.zip
