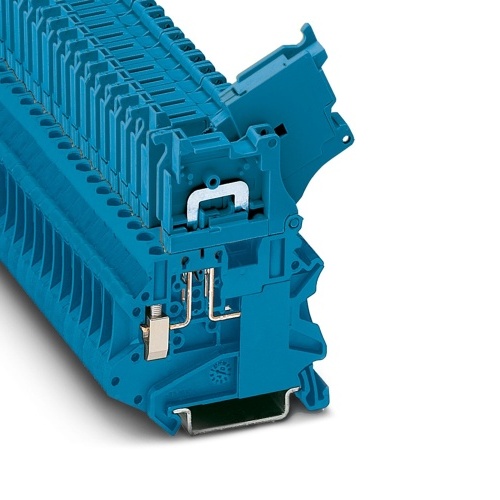

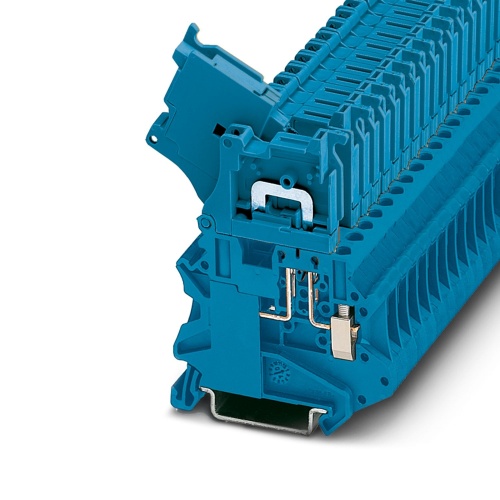

Phoenix Contact 3046456 Lever-type disconnect terminal block UT 4-HEDI BU
Normally In Stock
Code: 18097
UT 4-HEDI BU Phoenix Contact 3046456 Phoenix Contact UT 4-HEDI BU Blue Lever Type Fuse and Disconnect Terminal Block 6.2mm Single through screw with disconnect lever, up to 500V, 20A, 10-26AWG
Condition: New
Usually ships within 7-14 days. Call for ship time.$7.92
Sale Price
$6.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046456 A lever-type disconnect terminal block is available with a nominal voltage of 500 V and a maximum current rating of 20 A, utilizing a screw connection for secure attachment. The available cross-sectional areas range from 0.14 mm² to 6 mm², allowing for flexibility in circuit design. This terminal block can be mounted using either the NS 35/7.5 or NS 35/15 mounting configuration, and it is identified by its distinctive blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Lever-Type Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
