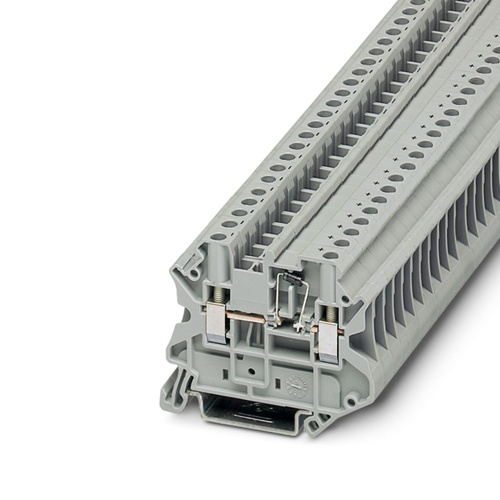

Phoenix Contact 3046359 Component terminal block UT 4-MTD-DIO/R-L-P/P
Normally In Stock
Code: 18096

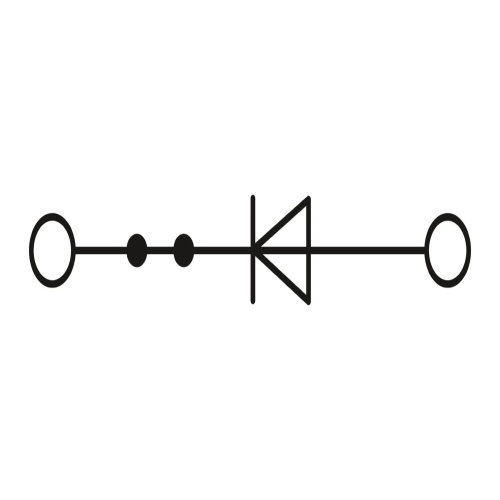

UT 4-MTD-DIO/R-L-P/P Phoenix Contact 3046359 Phoenix Contact UT 4-MTD-DIO/R-L-P/P Component Terminal Block with test connection and integrated Diode( Conducting from Right to left 6.2mm Gray Single through screw connection, 800V, .5A, 10-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$6.74
Sale Price
$5.62
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046359 The component terminal block has a specific configuration for testing, featuring test socket screws that allow for the insertion of test plugs with a nominal current capacity of 0.5 A and supporting up to two connections via screw connection, spanning across various cross-sectional ratings from 0.14 mm2 to 6 mm2, and is mounted using type NS 35/7.5 or NS 35/15, with a standard color designation of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Diode
With Diode
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Amperage
0.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Component Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3046359 CAD data International.dxfPhoenix 3046359 CAD data International.pdfPhoenix 3046359 CAD data International.stpPhoenix 3046359 CAD Drawing.zipPhoenix 3046359 Manufacturers declaration English.pdfPhoenix 3046359 Safety note English.pdfPhoenix 3046359 Spec Sheet.pdfPhoenix 3046359 Tender Text English.zip
