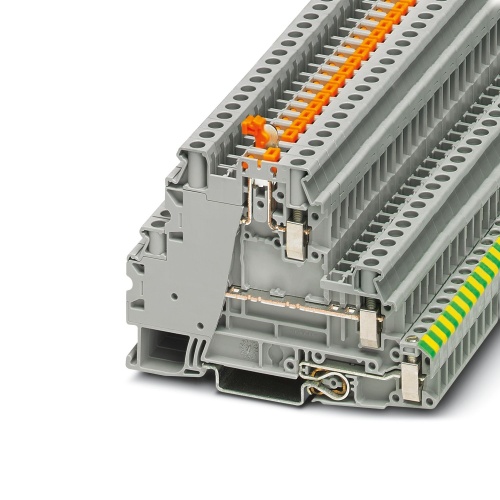

Phoenix Contact 3214364 Multi-level terminal block UT 4-PE/L/MT
Normally In Stock
Code: 18086

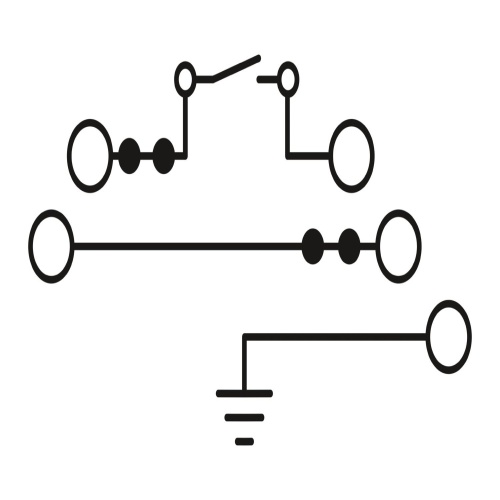

UT 4-PE/L/MT Phoenix Contact 3214364 Phoenix Contact UT 4-PE/L/MT. Terminal Block 6.2mm Gray Knife Disconnect Two Level Feed through screw connection, up to 500V, 30A, 10-26AWG (No end cover)
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.58
Sale Price
$12.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214364 The terminal block features a multi-level design with specific voltage and current ratings, including 500V and 28A nominal values, with various cross section sizes ranging from 0.14mm2 to 6mm2, all secured by screw connections for mounting on NS35/7.5 and NS35/15 standards, typically presented in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Multi-Level Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3214364 CAD data International.dxfPhoenix 3214364 CAD data International.pdfPhoenix 3214364 CAD data International.stpPhoenix 3214364 CAD Drawing.zipPhoenix 3214364 Certification English.pdfPhoenix 3214364 Certification International.pdfPhoenix 3214364 Manufacturers declaration English.pdfPhoenix 3214364 Manufacturers declaration International-2.pdfPhoenix 3214364 Manufacturers declaration International.pdfPhoenix 3214364 Safety note English.pdfPhoenix 3214364 Spec Sheet.pdfPhoenix 3214364 Tender Text English.zipPhoenix 3214364 User instructions for the Ex Area International.pdf
