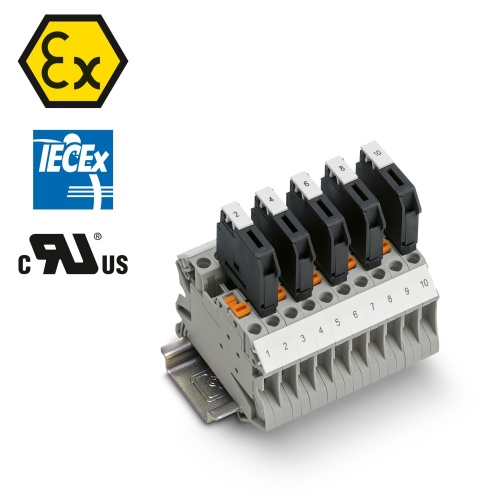

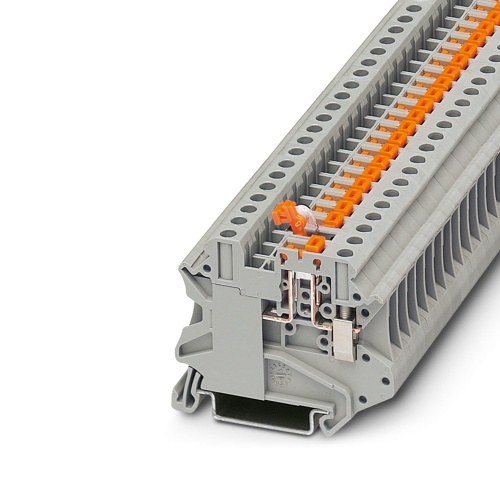

Phoenix Contact 3046173 Knife-disconnect terminal block UT 4-MT-P/P-EX
Normally In Stock
Code: 18084
UT 4-MT-P/P-EX Phoenix Contact 3046173 Phoenix Contact UT 4-MT-P/P-EX. Terminal Block (With test socket screws) 6.2mm Gray Knife Disconnect Feed through screw connection (Ex nA Approval), up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$5.08
Sale Price
$4.23
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046173 The knife-disconnect terminal block features a test socket for inserting test plugs and is designed to operate at 500 V with a maximum current of 20 A, using screw connections. The rated cross-section is 2.5 mm2, allowing for cross-sectional areas between 0.14 mm2 and 6 mm2, and can be mounted on types NS 35/7,5 or NS 35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Double bridge shaft enables individual potential distribution and supply
Compact design and high current carrying capacity of 20 A
Suitable for process technology, thanks to Ex nA approval
Downloads
Phoenix 3046173 CAD data International.dxfPhoenix 3046173 CAD data International.pdfPhoenix 3046173 CAD data International.stpPhoenix 3046173 CAD Drawing.zipPhoenix 3046173 Certification English-2.pdfPhoenix 3046173 Certification English.pdfPhoenix 3046173 Manufacturers declaration English.pdfPhoenix 3046173 Manufacturers declaration International-2.pdfPhoenix 3046173 Manufacturers declaration International.pdfPhoenix 3046173 Safety note English.pdfPhoenix 3046173 Spec Sheet.pdfPhoenix 3046173 Tender Text English.zipPhoenix 3046173 User instructions for the Ex Area English.pdf
