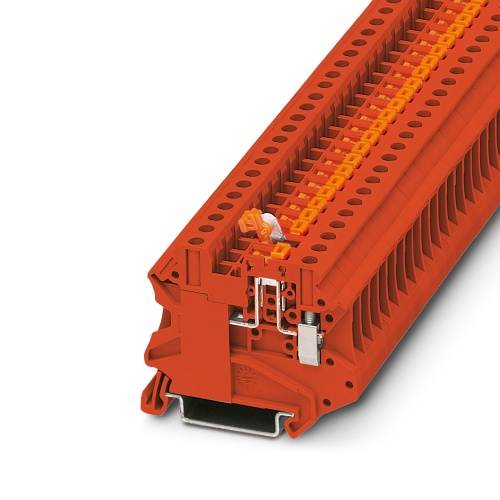

Phoenix Contact 3046279 Knife-disconnect terminal block UT 4-MT RD
Normally In Stock
Code: 18082
UT 4-MT RD Phoenix Contact 3046279 Phoenix Contact UT 4-MT RD. Terminal Block 6.2mm Red Knife Disconnect Feed through screw connection, up to 500V, 20A, 10-26AWG up to 500V, 20A, 10-26AWG (No end cover) (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$4.32
Sale Price
$3.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046279 A knife-disconnect terminal block with a nominal voltage of 500 V has specific characteristics, including a maximum continuous current of 20 A and can be connected using a screw method, with a rated cross-sectional area of 4 mm2. The actual cross-sectional area ranges from 0.14 mm2 to 6 mm2, and it is compatible with mounting systems NS 35/7.5 and NS 35/15. Additionally, the terminal block has a distinctive red color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Red
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3046279 CAD data International.dxfPhoenix 3046279 CAD data International.pdfPhoenix 3046279 CAD data International.stpPhoenix 3046279 CAD Drawing.zipPhoenix 3046279 Manufacturers declaration English.pdfPhoenix 3046279 Manufacturers declaration International-2.pdfPhoenix 3046279 Manufacturers declaration International.pdfPhoenix 3046279 Safety note English.pdfPhoenix 3046279 Spec Sheet.pdfPhoenix 3046279 Tender Text English.zip
