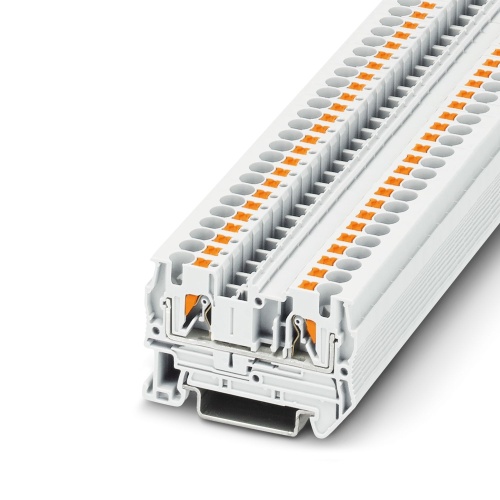

Phoenix Contact 3211778 Feed-through terminal block PT 4 WH
Normally In Stock
Code: 18076
PT 4 WH Phoenix Contact 3211778 Phoenix Contact PT 4 WH. Terminal Block 6.2mm White Single through Push-In Connection 800V, 38A, 10-24AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.11
Sale Price
$1.76
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211778 A feed-through terminal block features a nominal voltage of 800 V and a maximum current capacity of 32 A, with two push-in connections available for connectivity, rated for cross-sections between 0.2 mm2 and 6 mm2, supported by the NS 35/7,5 and NS 35/15 mounting types in white color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
White
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Tested for railway applications
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3211778 CAD data International.dxfPhoenix 3211778 CAD data International.pdfPhoenix 3211778 CAD data International.stpPhoenix 3211778 CAD Drawing.zipPhoenix 3211778 Certification English-2.pdfPhoenix 3211778 Certification English.pdfPhoenix 3211778 Manufacturers declaration International-2.pdfPhoenix 3211778 Manufacturers declaration International-3.pdfPhoenix 3211778 Manufacturers declaration International-4.pdfPhoenix 3211778 Manufacturers declaration International.pdfPhoenix 3211778 Safety note English.pdfPhoenix 3211778 Spec Sheet.pdfPhoenix 3211778 Tender Text English.zipPhoenix 3211778 User instructions for the Ex Area International.pdf
