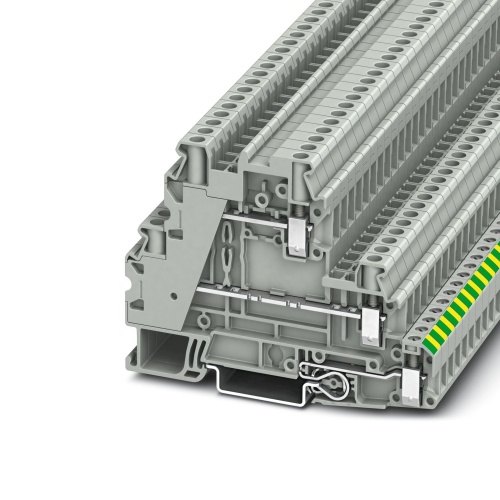

Phoenix Contact 3214360 Multi-level terminal block UT 4-PE/L/L
Normally In Stock
Code: 18069
UT 4-PE/L/L Phoenix Contact 3214360 Phoenix Contact UT 4-PE/L/L. Two Level Terminal Block with Ground Block 6.2mm Gray with through screw connections, up to 500V, 36A, 10-26AWG
Condition: New
Usually ships within 7-14 days. Call for ship time.$14.58
Sale Price
$12.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214360 A multi-level terminal block is available with a nominal voltage of 500 V and a nominal current capacity of 30 A. The connection method is screw-based, and the rated cross-sectional area ranges from 4 mm2 to 6 mm2, with a corresponding cross-sectional area of 0.14 mm2 for specific applications. This terminal block can be mounted using two different types: NS 35/7,5 and NS 35/15, while its color is specified as gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3214360 CAD data International.dxfPhoenix 3214360 CAD data International.pdfPhoenix 3214360 CAD data International.stpPhoenix 3214360 CADA Drawing.zipPhoenix 3214360 Certification English.pdfPhoenix 3214360 Certification International.pdfPhoenix 3214360 Manufacturers declaration English.pdfPhoenix 3214360 Manufacturers declaration International-2.pdfPhoenix 3214360 Manufacturers declaration International.pdfPhoenix 3214360 Safety note English.pdfPhoenix 3214360 Spec Sheet.pdfPhoenix 3214360 Tender Text English.zipPhoenix 3214360 User instructions for the Ex Area International.pdf
