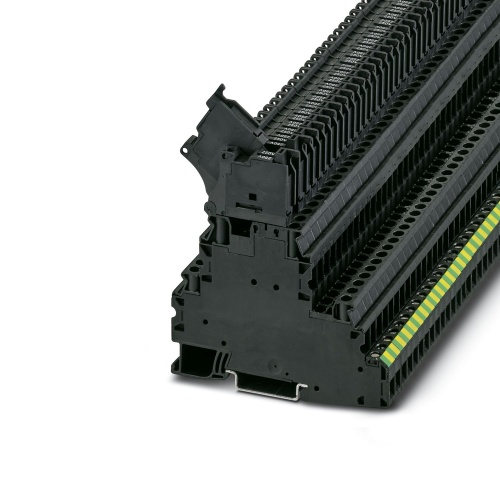

Phoenix Contact 3214323 Fuse modular terminal block UT 4-PE/L/HESILA 250 (5X20)
Normally In Stock
Code: 18063
UT 4-PE/L/HESILA 250 (5X20) Phoenix Contact 3214323 Fuse Block UT 4-PE/L/HESILED 250 (5X20) Black
Condition: New
Usually ships within 7-14 days. Call for ship time.$24.43
Sale Price
$20.36
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214323 A fuse terminal block is available in various types, including Glass / ceramics options, with the specific G / 5 x 20 type featuring a nominal voltage of 250 V and a thermal continuous current rating of 30 A. The connection method for this terminal block is screw-based, allowing for rated cross sections ranging from 0.14 mm2 to 6 mm2. The mounting type includes options such as NS 35/7,5 and NS 35/15, with all units featuring a black color designation.
Specifications
Terminal Block Indication
120V LED Indicator
Terminal Block Indication
230V LED Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Ground Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides

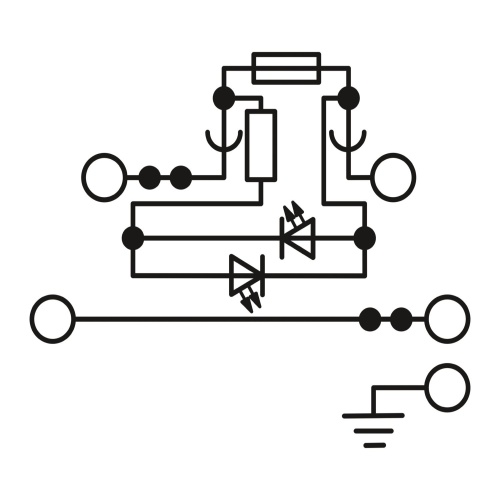

Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3214323 CAD data International-2.pdfPhoenix 3214323 CAD data International.dxfPhoenix 3214323 CAD data International.pdfPhoenix 3214323 CAD data International.stpPhoenix 3214323 CAD Drawing.zipPhoenix 3214323 Certification English.pdfPhoenix 3214323 Certification International.pdfPhoenix 3214323 Manufacturers declaration English.pdfPhoenix 3214323 Manufacturers declaration International-2.pdfPhoenix 3214323 Manufacturers declaration International.pdfPhoenix 3214323 Safety note English.pdfPhoenix 3214323 Spec Sheet.pdfPhoenix 3214323 Tender Text English.zipPhoenix 3214323 User instructions for the Ex Area International.pdf
