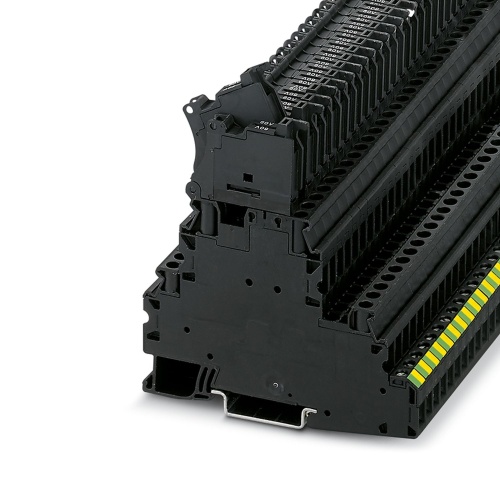

Phoenix Contact 3214322 Fuse modular terminal block UT 4-PE/L/HESILED 60 (5X20)
Normally In Stock
Code: 18062
UT 4-PE/L/HESILED 60 (5X20) Phoenix Contact 3214322 Fuse Block UT 4-PE/L/HESILED 60 (5X20) Black
Condition: New
Usually Ships Same day or Next Day$30.58
Sale Price
$25.48
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214322 The fuse terminal block has various configurations such as glass/ceramic types, with a specific size and voltage rating of 60V. It features screw connections for easy installation, with rated cross-sections ranging from 0.14 to 6mm2. The fuse is also mounted using the NS35/7.5 and NS35/15 modules, and comes in black color.
Specifications
Terminal Block Indication
48V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
60 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Ground Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3214322 CAD data International.dxfPhoenix 3214322 CAD data International.pdfPhoenix 3214322 CAD data International.stpPhoenix 3214322 CAD Drawing.zipPhoenix 3214322 Certification English.pdfPhoenix 3214322 Certification International.pdfPhoenix 3214322 Manufacturers declaration English.pdfPhoenix 3214322 Manufacturers declaration International-2.pdfPhoenix 3214322 Manufacturers declaration International.pdfPhoenix 3214322 Safety note English.pdfPhoenix 3214322 Spec Sheet.pdfPhoenix 3214322 Tender Text English.zipPhoenix 3214322 User instructions for the Ex Area International.pdf
