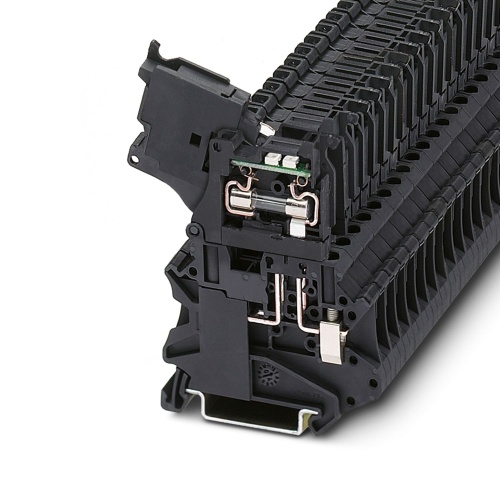

Phoenix Contact 3248005 Fuse modular terminal block UT 4-HESILED 24 (5X20) 120KOHM
Normally In Stock
Code: 18058
UT 4-HESILED 24 (5X20) 120KOHM Phoenix Contact 3248005 Phoenix Contact UT 4-HESILED 24 (5X20) 120KOHM. Fuse Block 6.2mm Black with screw connection for 5mm x 20mm glass fuse insert with 12-60 V AC/DC light indicator, 24V, 6.3A, screw connection, 26-10 AWG.
Condition: New
Usually Ships Same day or Next Day$16.88
Sale Price
$14.07
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3248005 The fuse terminal block features a glass or ceramic fuse with a rating of G/5 x 20, suitable for 24V applications, and has a maximum current capacity of 6.3A. The connection method is screw-based, allowing for a rated cross-sectional area of 4mm2, which can range from 0.14mm2 to 6mm2. The mounting type is NS35/7.5 or NS35/15, and the terminal block has a black color.
Specifications
Terminal Block Indication
12V LED Indicator
Terminal Block Indication
24V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Test pick-off on both sides in the fuse lever
An extremely compact design
Downloads
Phoenix 3248005 CAD data International.dxfPhoenix 3248005 CAD data International.pdfPhoenix 3248005 CAD data International.stpPhoenix 3248005 CAD Drawing.zipPhoenix 3248005 Manufacturers declaration English.pdfPhoenix 3248005 Safety note English.pdfPhoenix 3248005 Spec Sheet.pdfPhoenix 3248005 Tender Text English.zip
