Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

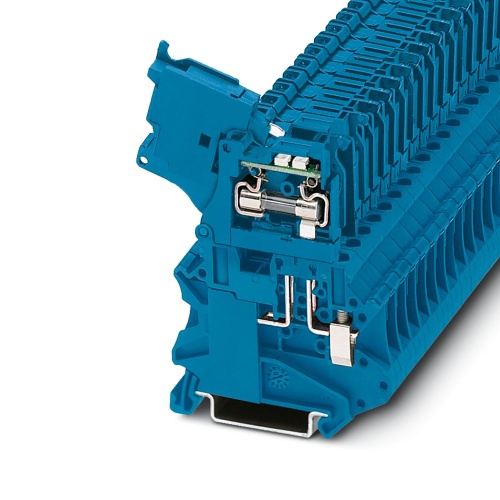

Phoenix Contact 3046537 Fuse modular terminal block UT 4-HESILED 24 (5X20) BU
Normally In Stock
Code: 18056
UT 4-HESILED 24 (5X20) BU Phoenix Contact 3046537 Phoenix Contact UT 4-HESILED 24 (5x20) BU. Fuse Block 6.2mm Blue with screw connection for 5mm x 20mm glass fuse insert with 12-30 V AC/DC light indicator, 24V, 6.3A, screw connection, 26-10 AWG.
Condition: New
Usually Ships Same day or Next Day$12.91
Sale Price
$10.76
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046537 A fuse with a modular terminal block features a glass/ceramic construction and has an internal configuration of G / 5 x 20. It is rated for 24V nominal voltage and supports up to 6.3A of current flow. The connection method uses screw connections, allowing for a range of cross-sectional ratings from 0.14 mm2 to 6 mm2. It is designed with mounting options including NS 35/7,5 and NS 35/15, and has a blue color finish.
Specifications
Terminal Block Indication
12V LED Indicator
Terminal Block Indication
24V LED Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
