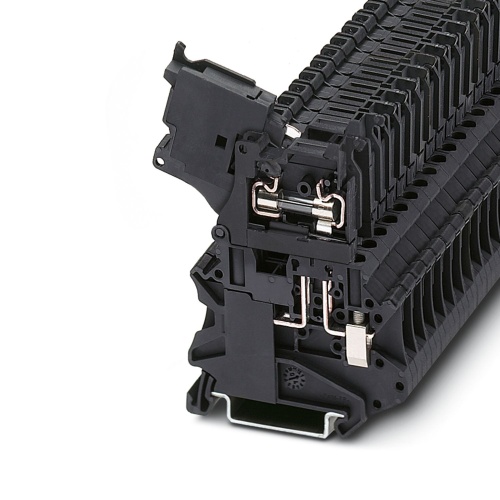

Phoenix Contact 3060527 Fuse modular terminal block UT 4-HESI (5X20) BU
Normally In Stock
Code: 18054
UT 4-HESI (5X20) BU Phoenix Contact 3060527 Phoenix Contact UT 4-HESI (5x20) BU. Fuse Block 6.2mm Blue with screw connection for 5mm x 20mm glass fuse insert without indicator, up to 500V, 6.3A, screw connection, 26-10 AWG. (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.32
Sale Price
$5.27
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3060527 The fuse terminal block is a modular component that features a glass/ceramic fuse with a rating of G / 5 x 20 and an operating voltage of 500 V. It has a nominal current capacity of 6.3 A and can be connected using a screw connection method, while its cross-sectional area falls within the range of 0.14 mm2 to 6 mm2. The terminal block is designed with two mounting types: NS 35/7,5 and NS 35/15, and it has a color designation of blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Fuse Type
G - 5 X 20
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3060527 CAD data International.dxfPhoenix 3060527 CAD data International.pdfPhoenix 3060527 CAD data International.stpPhoenix 3060527 Manufacturers declaration English.pdfPhoenix 3060527 Manufacturers declaration International.pdfPhoenix 3060527 Safety note English.pdfPhoenix 3060527 Spec Sheet.pdfPhoenix 3060527 Tender Text English.zip
