Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

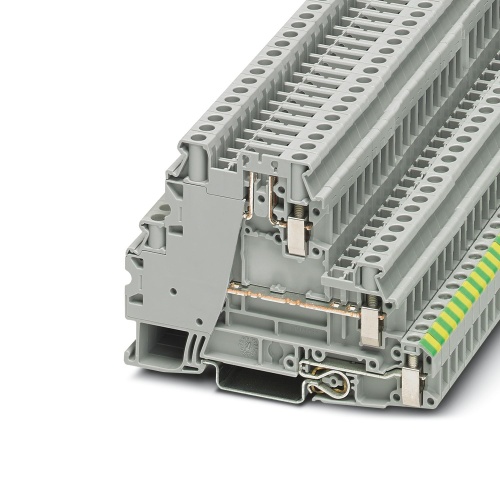

Phoenix Contact 3214365 Multi-level terminal block UT 4-PE/L/TG
Normally In Stock
Code: 18053
UT 4-PE/L/TG hoenix Contact 3214365 UT 4-PE/L/TG. Gray Removable Disconnect 6.2mm din rail mount Terminal Blocks with Single through screw connection. Two Level with 5 connections
Condition: New
Usually Ships Same day or Next Day$13.24
Sale Price
$11.03
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214365 A multi-level terminal block with specified parameters is available, allowing users to determine current and voltage by selecting the correct plug. The nominal values are 500V for voltage and 28A for current, while connections can be made using a screw method and have rated cross sections ranging from 2.5mm² to 6mm². Additionally, mounting options include NS35/7.5 and NS35/15, with a standard color of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
3
Terminal Block Number of Connections
5
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3214365 CAD data International.dxfPhoenix 3214365 CAD data International.pdfPhoenix 3214365 CAD data International.stpPhoenix 3214365 CAD Drawing.zipPhoenix 3214365 Certification English.pdfPhoenix 3214365 Certification International.pdfPhoenix 3214365 Manufacturers declaration English.pdfPhoenix 3214365 Manufacturers declaration International-2.pdfPhoenix 3214365 Manufacturers declaration International.pdfPhoenix 3214365 Safety note English.pdfPhoenix 3214365 Spec Sheet.pdfPhoenix 3214365 Tender Text English.zipPhoenix 3214365 User instructions for the Ex Area International.pdf
