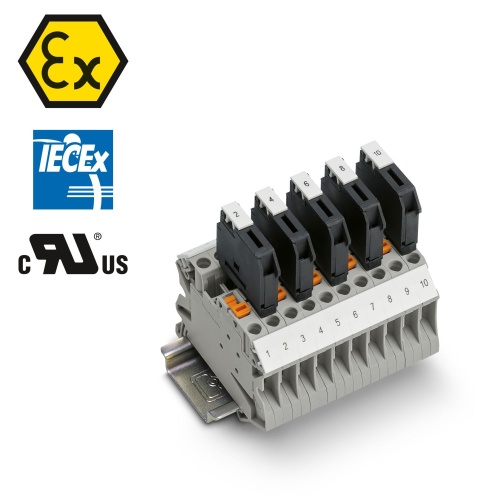

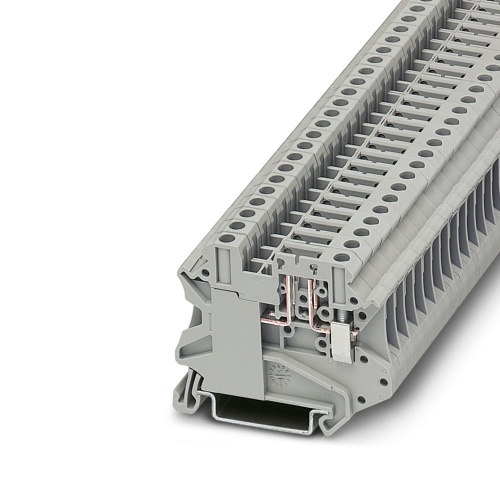

Phoenix Contact 3046143 Disconnect terminal block UT 4-TG-EX
Normally In Stock
Code: 18051
UT 4-TG-EX Phoenix Contact 3046143 Phoenix Contact UT 4-TG-EX. Gray Removable Disconnect Fuse and Terminal Block Base 6.2mm Single through screw connection to use with Plug-ins sold seperately (Ex nA Approval), 500V, 20A, 10-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$3.28
Sale Price
$2.73
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3046143 The terminal block is accessed by disconnecting it, and the current and voltage ratings are determined by the type of plug used, with a nominal voltage of 500V and a nominal current of 20A. The connection method involves a screw connection, while the rated cross-sectional area of the wires ranges from 0.14mm² to 6mm². The terminal block can be mounted using either the NS35/7.5 or NS35/15 mounting system, and it is typically gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Double bridge shaft enables individual potential distribution and supply
Compact design and high current carrying capacity of 20 A
Suitable for process technology, thanks to Ex nA approval
Downloads
Phoenix 3046143 CAD data International.dxfPhoenix 3046143 CAD data International.pdfPhoenix 3046143 CAD data International.stpPhoenix 3046143 CAD Drawing.zipPhoenix 3046143 Certification English-2.pdfPhoenix 3046143 Certification English.pdfPhoenix 3046143 Manufacturers declaration English.pdfPhoenix 3046143 Manufacturers declaration International-2.pdfPhoenix 3046143 Manufacturers declaration International.pdfPhoenix 3046143 Safety note English.pdfPhoenix 3046143 Spec Sheet.pdfPhoenix 3046143 Tender Text English.zipPhoenix 3046143 User instructions for the Ex Area English.pdf
