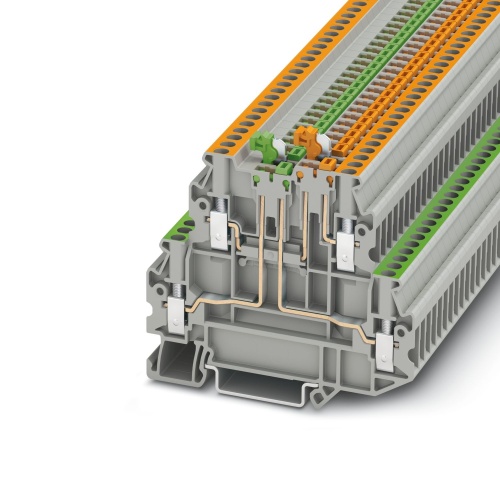

Phoenix Contact 3044670 Knife-disconnect terminal block UTT 2,5-2MT-P/P
Normally In Stock
Code: 18047
UTT 2,5-2MT-P/P Phoenix Contact 3044670 Phoenix Contact UTT 2.5-2MT-P/P 2.5-MT-P/P, Double Level Feed Through Terminal Block 5.2mm (With test socket screws) Separate Knife Disconnects for each Level Gray, 400V, 16A, 12-26AWG bridgeable on both Levels
Condition: New
Usually Ships Same day or Next Day$13.51
Sale Price
$11.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044670 The terminal block features a knife-disconnect design with test socket screws for easy testing, operating at 400V and a maximum current of 16A, utilizing screw connections for secure attachment. The rated cross-sectional area ranges from 0.14 to 4mm2, also employing screw connections, and is designed for mounting on NS35/7.5 or NS35/15 standards, with a coloration of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Amperage
16 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Sub Component
Knife Disconnect Terminal Block
Features
Convenient separation of circuits, thanks to lever-type disconnect knife
For a clear overview, each terminal point supports large-surface labeling
Downloads
Phoenix 3044670 CAD data International.dxfPhoenix 3044670 CAD data International.pdfPhoenix 3044670 CAD data International.stpPhoenix 3044670 CAD Drawing.zipPhoenix 3044670 Manufacturers declaration English.pdfPhoenix 3044670 Manufacturers declaration International-2.pdfPhoenix 3044670 Manufacturers declaration International-3.pdfPhoenix 3044670 Manufacturers declaration International.pdfPhoenix 3044670 Safety note English.pdfPhoenix 3044670 Spec Sheet.pdfPhoenix 3044670 Tender Text English.zip
