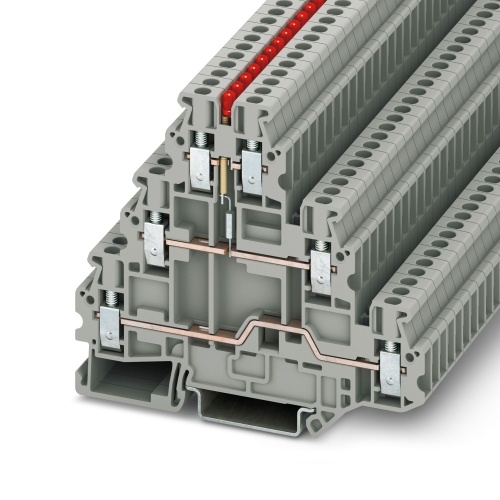

Phoenix Contact 3214288 Component terminal block UT 2,5-3L-LA24RD/O-M
Normally In Stock
Code: 18033

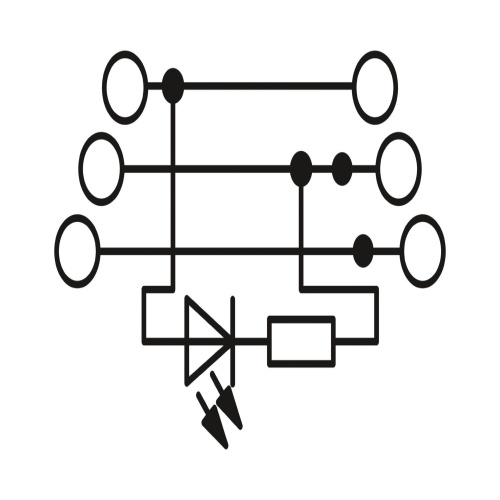

UT 2,5-3L-LA24RD/O-M Phoenix Contact 3214288 Phoenix Contact UT 2.5-3L-LA24RD/O-M. Three Level Terminal Block 5.2mm Gray with Integrated Diode conducting from top to middle screw connection, up to 500V, 24A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually ships within 7-14 days. Call for ship time.$12.22
Sale Price
$10.18
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214288 The component terminal block features an LED display that indicates the current and voltage values. The nominal specifications include a rated voltage of 24V and a maximum current capacity of 19A, which is achieved through screw connections with a cross-sectional area ranging from 0.14mm² to 4mm². The mounting type is designated as NS35/7.5 or NS35/15, while the component itself has a gray color and is rated for a specific amount of current flow through it.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Diode
With Diode
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
19 Amp
Sub Component
Component Terminal Block
Features
For a clear overview, each terminal point supports large-surface labeling
A very high wiring density is achieved with the compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly
Downloads
Phoenix 3214288 CAD data International.dxfPhoenix 3214288 CAD data International.stpPhoenix 3214288 CAD Drawing.zipPhoenix 3214288 Manufacturers declaration English.pdfPhoenix 3214288 Manufacturers declaration International.pdfPhoenix 3214288 Safety note English.pdfPhoenix 3214288 Spec Sheet.pdfPhoenix 3214288 Tender Text English.zip
