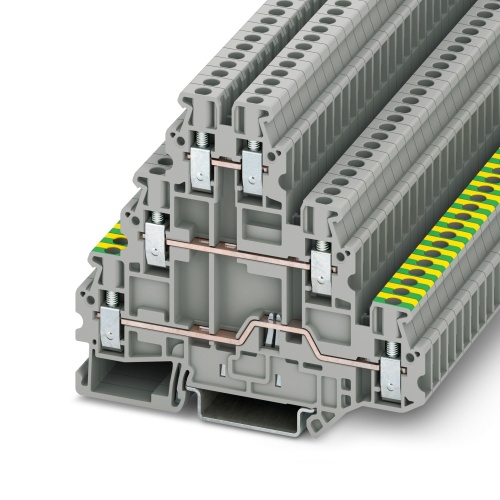

Phoenix Contact 3214301 Multi-level terminal block UT 2,5-PE/L/L
Normally In Stock
Code: 18030
UT 2,5-PE/L/L Phoenix Contact 3214301 Phoenix Contact UT 2.5-PE/L/L. Two Level Terminal Block with Ground Block 5.2mm Gray with screw connection, up to 500V, 24A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$9.08
Sale Price
$7.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214301 The multi-level terminal block has a nominal voltage of 500V and a nominal current rating of 19A, featuring screw connections on all three levels. The cross-sectional area of the rated part is 2.5mm², with a range of 0.14-4mm² available, and it can be mounted using the NS35/7,5 or NS35/15 mounting types, characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
19 Amp
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
For a clear overview, each terminal point supports large-surface labeling
A very high wiring density is achieved with the compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly
Downloads
Phoenix 3214301 CAD data International.dxfPhoenix 3214301 CAD data International.pdfPhoenix 3214301 CAD data International.stpPhoenix 3214301 CAD Drawing.zipPhoenix 3214301 Manufacturers declaration English.pdfPhoenix 3214301 Manufacturers declaration International.pdfPhoenix 3214301 Safety note English.pdfPhoenix 3214301 Spec Sheet.pdfPhoenix 3214301 Tender Text English.zip
