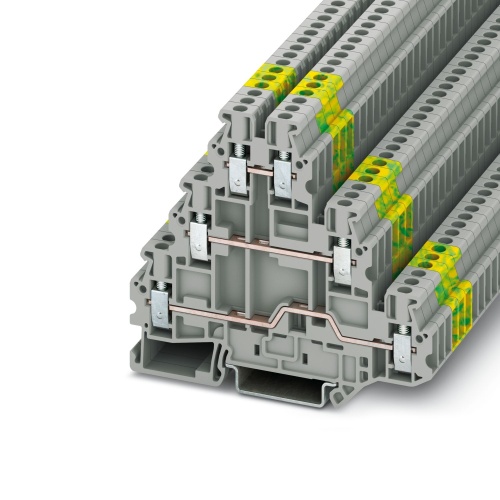

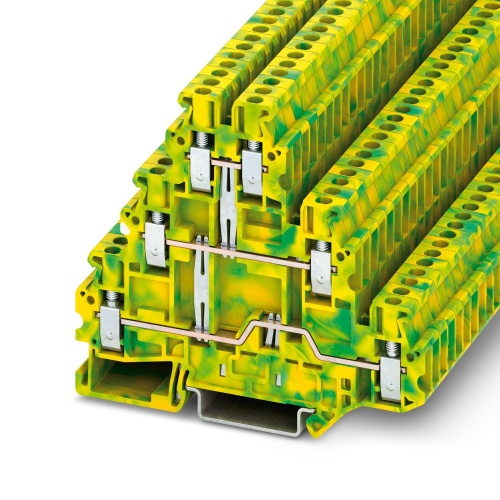

Phoenix Contact 3214275 Protective conductor terminal block UT 2,5-3PE
Normally In Stock
Code: 18029
UT 2,5-3PE Phoenix Contact 3214275 Phoenix Contact UT 2.5-3PE. Three Level Ground Block 5.2mm Green-Yellow with screw connection, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$9.86
Sale Price
$8.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214275 The protective conductor terminal block features a screw connection and can have varying cross-sections ranging from 0.14 mm² to 4 mm². Its mounting types include NS 35/7.5 and NS 35/15, with the terminal block itself typically colored in green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Tested for railway applications
For a clear overview, each terminal point supports large-surface labeling
A very high wiring density is achieved with the compact three-level terminal blocks
Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly
Downloads
Phoenix 3214275 CAD data International.dxfPhoenix 3214275 CAD data International.pdfPhoenix 3214275 CAD data International.stpPhoenix 3214275 CAD Drawing.zipPhoenix 3214275 Manufacturers declaration English.pdfPhoenix 3214275 Manufacturers declaration International.pdfPhoenix 3214275 Safety note English.pdfPhoenix 3214275 Spec Sheet.pdfPhoenix 3214275 Tender Text English.zip
