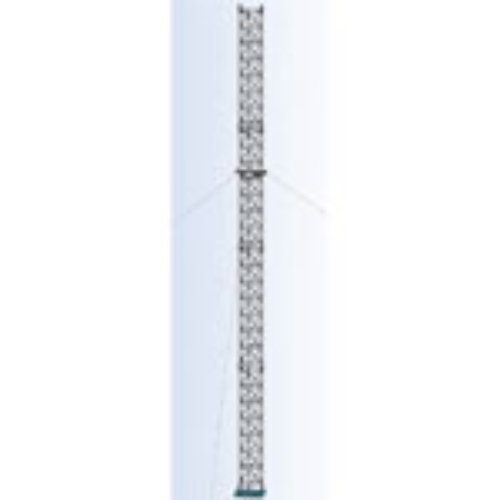

The 55G lends itself to a wide variety of uses, particularly where unusual wind loading and heightrequirements exist. The 55G was designed to provide excellent strength in heights up to 400’. Tower designs are in accordance with ANSI/TIA-222-F and ANSI/TIA-222-G, Class I Structures, Topographic Category 1. Design assumes towers are installed on level ground. Lower EPA values will apply for roof mounted towers or for sites located on unusual terrain. Designs assume two 1/2” diameter lines on each tower face. Anchor radius is from tower base to intersection of anchor rod with ground. Guy chord lengths shown are based on level ground. Initial tensions for guys are shown in ( ) in pounds at 60º Fahrenheit. Antenna and mounts are assumed symmetrically placed at the tower top.
