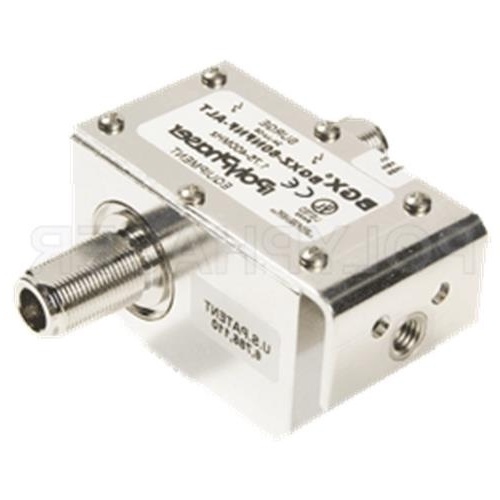

Polyphaser BGXZ-60NFNF-ALT Coax Lightning Protector 40 MHz-400 MHz
Normally In Stock
Code: 17978
Polyphaser BGXZ-60NFNF-ALT Hybrid Multistage Coax Protector 40 MHz-400 MHz DC Pass Multi-Transmitters Lightning Protection NF-NF(Surge side/Protected Side) Bulkhead Mount or Flange Mount.
Condition: New
Usually ships Same Day or Next Day$248.05
Sale Price
$206.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Polyphaser BGXZ-60NFNF-ALT Hybrid Multistage Coax Protector 40 MHz-400 MHz DC Pass Multi-Transmitters Lightning Protection NF-NF(Surge side/Protected Side) Bulkhead Mount or Flange Mount.
Specifications
Connector Protected Side (RF Protection)
N Female
Connector Surge Side (RF Protection)
N Female
Direction Connection (RF Protection)
One Direction
Weatherization (RF Protection)
Weatherized
Max Surge Rate (RF Protection)
20Ka
DC Handling (RF Protection)
DC Pass
Technology (RF Protection)
Hybrid Inductor
DC Pass Voltage (RF Protection)
60 VDC
Max Watts (RF Protection)
100 Watts
Max Insertion Loss (RF Protection)
≤0.25 Db
VSWR (RF Protection)
≤1.1:1
Manufacturer
Polyphaser
Frequency (RF Protection)
40 Mhz-400 Mhz
Frequency (RF Protection)
100 Mhz
Frequency (RF Protection)
200 Mhz
Frequency Max (RF Protection)
400 Mhz
Component
Lightning Protector
Features
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) BGXZ-60NFNF-ALT is in-stock and will ship same-day as purchased.
This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.
Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 40 MHz to 400 MHz while suppressing DC surge.While this radio frequency lightning surge suppressor operates in a range of frequencies from 40MHz to 400MHz, it is supporting a power handling maximum of 100 Watts.
RF surge protector BGXZ-60NFNF-ALT from PolyPhaser incorporates hybrid technology to provide protection for equipment at up to the max. power of 100W.
Our coax surge protection device for RF is manufactured with a N type connection in and a type N out.BGXZ-60NFNF-ALT is constructed with a female gender for the input and female for the output.
This F/F type N to type N surge protecting component for RF has a let-through energy of 2.5mJ.
The coaxial lightning surge arrestor is IP rated, it has an IP67 rating.PolyPhaser provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping.
Our facilities ship type N F/F coaxial RF surge protector, 40MHz - 400MHz, 100W, IP67, 60 V max., 2.5mJ, 20kA, hybrid, bracket down, hole mount as well as the rest of our surge protection product line from in-stock inventory the same day as purchased.
We support our customers with a sense of urgency while providing innovative lightning and surge protection solutions that ensure reliable operation of critical systems for a connected world.
