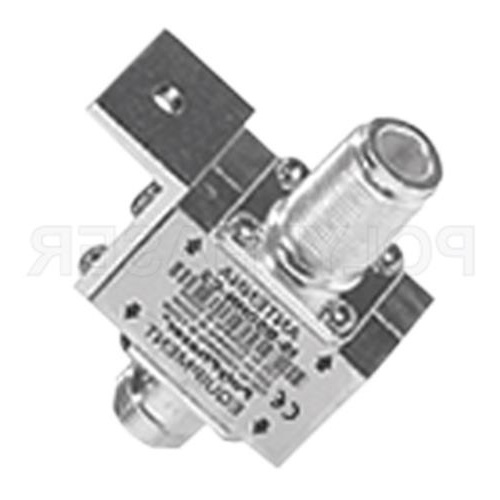

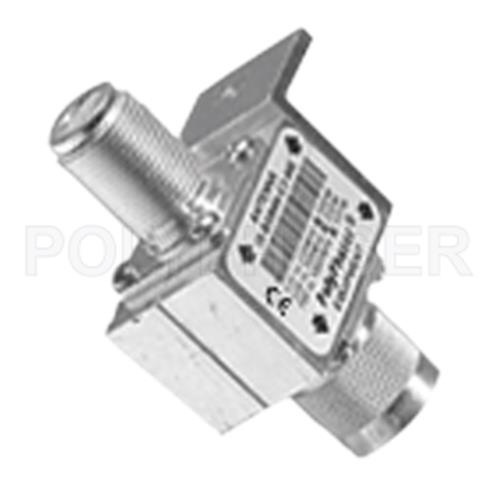

Polyphaser IS-B50HN-C2 Coax Lightning Protector 125 MHz-1 GHz
Normally In Stock
Code: 17972
Polyphaser IS-B50HN-C2 Gas Tube Coax Protector 125 MHz-1000 MHz Single Transmitter DC Block Gas Tube. NF-NF(Surge side/Protected Side) Bulkhead Mount.
Condition: New
IN STOCK. SHIPS SAME DAY IF ORDERED BEFORE 12:00PM MST$164.59
Sale Price
$137.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Polyphaser IS-B50HN-C2 Gas Tube Coax Protector 125 MHz-1000 MHz Single Transmitter DC Block Gas Tube. NF-NF(Surge side/Protected Side) Bulkhead Mount.
Specifications
Technology (RF Protection)
Gas Tube (Avg 10 Yr. Life)
Connector Protected Side (RF Protection)
N Female
Connector Surge Side (RF Protection)
N Female
DC Handling (RF Protection)
DC Block
Direction Connection (RF Protection)
One Direction
Max Surge Rate (RF Protection)
50Ka
Weatherization (RF Protection)
Non-Weatherized
Max Watts (RF Protection)
500 Watts
Max Insertion Loss (RF Protection)
≤0.1 Db
VSWR (RF Protection)
≤1.1:1
Frequency (RF Protection)
125 Mhz-1 Ghz
Manufacturer
Polyphaser
Frequency Max (RF Protection)
1 Ghz
Frequency (RF Protection)
100 Mhz
Frequency (RF Protection)
200 Mhz
Component
Lightning Protector
Features
PolyPhaser coaxial RF surge protector (also known as lightning surge protector, lightning surge arrestor or suppressor) IS-B50HN-C2 is in-stock and will ship same-day as purchased.
This radio frequency surge protector / lightning surge arrestor helps protect your equipment from electromagnetic pulse (EMP) or power surges that are commonly caused by lightning or other strong electrical changes.
Our radio frequency coaxial surge protector product is commonly used for radio and antenna installations where part or all system equipment is outdoors to protect sensitive equipment and is designed to pass 125 MHz to 1 GHz while suppressing DC surge.While this radio frequency lightning surge suppressor operates in a range of frequencies from 125MHz to 1GHz, it is supporting a power handling maximum of 500 Watts.
RF surge protector IS-B50HN-C2 from PolyPhaser incorporates blocking cap and gas tube technology to provide protection for equipment at up to the max. power of 500W.
Our coax surge protection device for RF is manufactured with a type N bulkhead connection in and a type N bulkhead out.IS-B50HN-C2 is constructed with a female gender for the input and female for the output.
This F/F N type to N type surge protecting component for RF has a let-through energy of 800uJ.
Our type N bulkhead coaxial lightning surge protector is REACH and RoHS compliant.PolyPhaser provides one of the largest varieties of RF / microwave surge protector devices available for same-day shipping.
Our facilities ship type N F/F bulkhead coaxial RF surge protector, 125MHz - 1GHz, DC block, 500W, 800uJ, 20kA, blocking cap, hole mount as well as the rest of our surge protection product line from in-stock inventory the same day as purchased.
