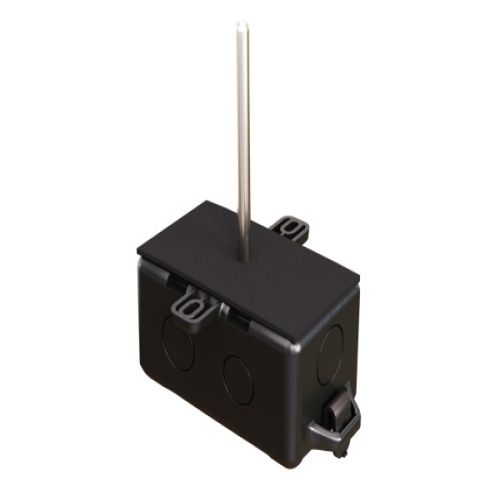

ACI CONFIGNIST123 A/AN-D-4"-PB-NIST 10K Ohm,Type III Duct Thermistor
Normally In Stock
Code: 179569
ACI CONFIGNIST123 10,000 Ohm Thermistor (Type III), Duct, 4", Plastic Enclosure, NIST Cert
Condition: New
Usually ships Same Day or Next Day$68.04
Sale Price
$56.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Thermistor Duct Series features a stainless steel probe with two, 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using ACI’s proved double encapsulation process to eliminate the effects of moisture on the sensors and increased response times from our high quality, thermally conductive epoxy. The duct sensor is designed to be used in smaller duct applications and includes an insulation pad for sealing your duct and dampening vibration. The sensor length should be determined by the width or diameter of your duct such that the tip of the probe reaches the approximate center of the duct. Our standard enclosure options are the galvanized enclosure “-GD” or plastic duct enclosure with hinged cover “-PB”. On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control. This series can be ordered with optional NEMA/IP rated weather proof enclosures and NIST certificates as referenced on the back of the product data sheet. Applications: Roof Top Units, Air Handlers, Supply/Discharge/Return/Mixed Air Temperatures
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Type
10K Ohm-Type III
Features
The ACI Thermistor Duct Series features a stainless steel probe with two, 22 AWG Etched Teoncolored lead wires to dierentiate the dierent sensor types
The sensors in this series aremanufactured using ACI’s proved double encapsulation process to eliminate the eects ofmoisture on the sensors and increased response times from our high quality, thermallyconductive epoxy
The duct sensor is designed to be used in smaller duct applications andincludes an insulation pad for sealing your duct and dampening vibration
The sensor lengthshould be determined by the width or diameter of your duct such that the tip of the probereaches the approximate center of the duct
Our standard enclosure options are the galvanizedenclosure “-GD” or plastic duct enclosure with hinged cover “-PB”
On larger ducts, you maywant to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control
This series can beordered with optional NEMA/IP rated weather proof enclosures and NIST certicates as referenced on the back of the product data sheet.
