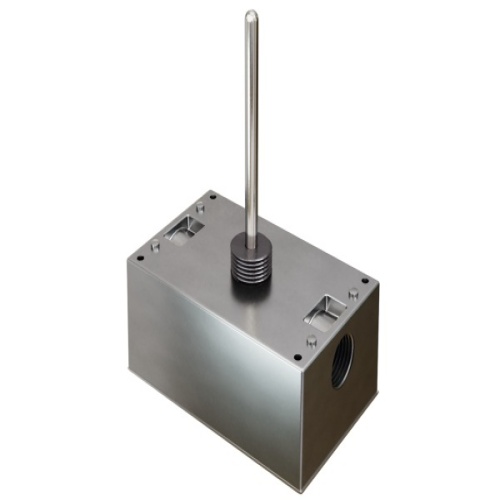

ACI 147918 A/0.1CP-INW-2.5"-BB 10K Ohm Immersion Thermistor
Normally In Stock
Code: 179300
ACI 147918 High Accuracy 10,000 Ohm Thermistor (Type II), Immersion, No Well, 2.5", NEMA 3R Enclosure
Condition: New
Usually ships Same Day or Next Day$40.50
Sale Price
$33.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The metal bell box, no well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and wells must be ordered separately for this part. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm
(Instrument-Sensor) Mounting
Immersion
Features
The ACI High accuracy Thermistor Immersion Series features a ¼” diameter stainless steel probewith two, 14 inch 22 AWG Etched Teon colored lead wires to dierentiate the dierent sensortypes
The sensors in this series are manufactured using ACI’s proven double encapsulationprocess to eliminate the eects of moisture upon the sensors and to increase the thermalresponse times using our high quality, thermally conductive epoxy
The immersion sensorscome standard with a welded thermowell “-I” version but can be ordered without the weldedthermowell “-INW” version
The “INW” version includes a standard ½” NPS (National PipeStraight) Male process thread to be used with an optional machined thermowell or in anexisting thermowell application
This series can be ordered with optional NEMA/IP ratedenclosures or NIST Certicates as shown in the ordering information on the back of the product data sheet.
