Code: 1790

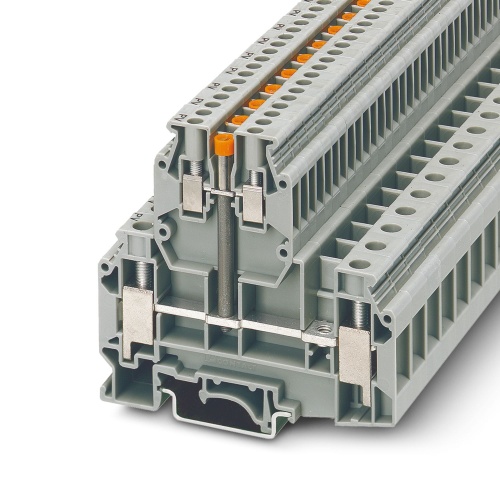

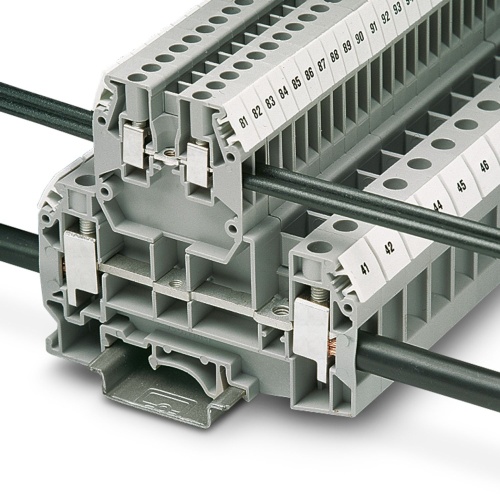

Phoenix Contact 2775485 Double-level terminal block UKKB 10/2,5-PV
Normally In Stock
UKKB 10/2,5-PV Phoenix Contact 2775485 Phoenix Contact UKKB 10/2,5-PV Feed-through modular Terminal Block, Cross section: 0.5 mm - 16 mm, Connection type: Screw connection, Width: 10.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15, NS 32 (Sold in packs of 50).
Condition: New
Usually Ships Same day or Next Day$42.49
Sale Price
$35.41
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

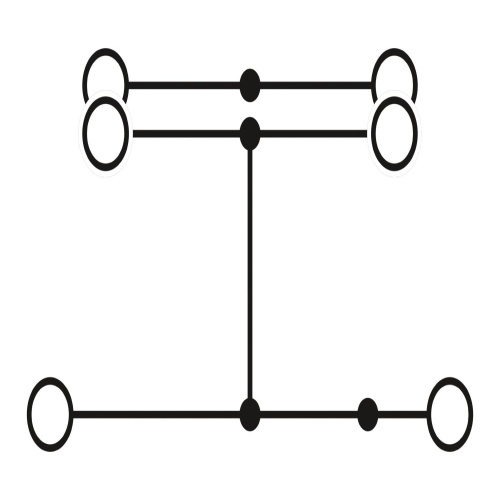

Phoenix Contact 2775485 A double-level terminal block features a ground bonding connection with nominal voltage of 500V and a nominal current rating of 57A. It has two levels with different cross-sectional ratings: the lower level accepts connections up to 16mm2, while the upper level is limited to 4mm2. Connections are made via screw connections, while mounting options include NS35/7.5, NS35/15, and NS32. The terminal block is typically gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
Model Type
UKKB
Features
Design width of just 10.2 mm
Downloads
Phoenix 2775485 CAD data International.dxfPhoenix 2775485 CAD data International.pdfPhoenix 2775485 CAD data International.stpPhoenix 2775485 CAD Drawing.dxfPhoenix 2775485 Manufacturers declaration English.pdfPhoenix 2775485 Manufacturers declaration International.pdfPhoenix 2775485 Safety note English.pdfPhoenix 2775485 Spec Sheet.pdfPhoenix 2775485 Tender Text English.zip
