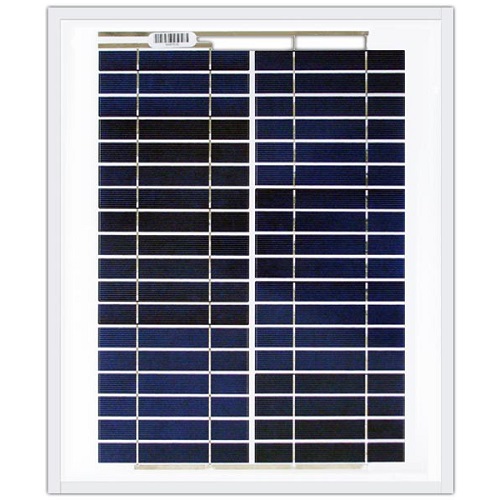

Ameresco 20M Solar Module 12V 20W
Normally In Stock
Code: 17895
Ameresco 20M Class 1 Div 2 Photovoltaic Solar Module 20W, 12V with 15' of cable AWG 18-2 wires. (16.6" x 19.7" x 0.9")
Condition: New
Usually ships Same Day or Next Day$192.78
Sale Price
$160.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ameresco 20M Solar Module 20W, 12V Built to last in harshest environments. Extra insulation and added protection with thick polyester back sheet. Accessable junction box with . Easy bolt installation with channel along side to secure 5/16" or M8 hex bolts. Made with 36 crystalline 6" silocon cut cells connected in series with 1/18th" high transmission glass with EVA lamination and a silver anodized frame. 2 Year Warranty.
Specifications
(Solar) Cell Type
Polycrystalline
(Solar) Classification
Class 1 Div 2
(Solar) Panel Width
16.6"
Manufacturer
Ameresco
(Solar) Voltage
12 Volt
(Solar) Watts
20 Watt
(Solar) Watt Range
11-20 Watt
(Solar) Panel Length
19.7"
(Solar) Panel Depth
0.9"
Features
From mountaintops to off-shore platforms, on weather stations in the bitter cold of Antarctica and on telephone signal repeaters in the hot Australian outback, the technology has been proven in the harshest environments.
Multimount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module, its dual channels accept either M8 or 5/16” hex-head bolts, allowing the module to be mounted from the side or back.
Bolts may be located anywhere along the channels
the channel groove is specially designed to prevent the bolt from rotating when tightening, allowing installation with just one wrench.
A 4.6 meter PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back. The module’s electrical connections are sealed for prevention against corrosion and moisture penetration.
ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and quality control processes.
