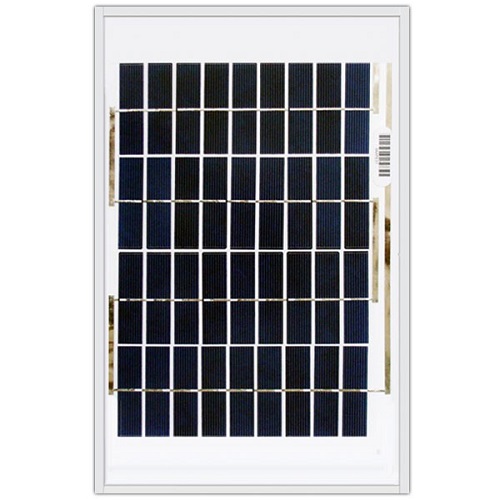

Ameresco 10M Solar Module 12V 10W
Normally In Stock
Code: 17893
Ameresco 10M Class 1 Div 2 Photovoltaic Solar Module 10W, 12V with 15' of cable AWG 18-2 wires. (16.57" x 10.58" x 0.91")
Condition: New
Usually ships Same Day or Next Day$123.12
Sale Price
$102.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ameresco 10M Solar Module 10W, 12V Built to last in harshest environments. Multimount frame with dual channel allows mounting from side or back. Long 15' cable from sealed Jbox for easy connection. Easy bolt installation with channel along side to secure 5/16" or M8 hex bolts. Made with 36 crystalline 6" silocon cut cells connected in series with 1/18th" high transmission glass with EVA lamination and a silver anodized frame. 2 Year Warranty.
Specifications
(Solar) Cell Type
Polycrystalline
(Solar) Classification
Class 1 Div 2
(Solar) Panel Width
10.58"
Manufacturer
Ameresco
(Solar) Voltage
12 Volt
(Solar) Watts
10 Watt
(Solar) Watt Range
1-10 Watt
(Solar) Panel Length
16.57"
(Solar) Panel Depth
0.91"
Features
Multimount frame allows even greater flexibility in mounting. Positioned parallel to the edge and back of the module, its dual channels accept either M8 or 5/16” hex-head bolts, allowing the module to be mounted from the side or back.
Bolts may be located anywhere along the channels
the channel groove is specially designed to prevent the bolt from rotating when tightening, allowing installation with just one wrench.
A 4.6 meter PVC-jacketed AWG 18-2 polarized cable is potted into the fully sealed junction box located on the module back. The module’s electrical connections are sealed for prevention against corrosion and moisture penetration.
