Code: 178736

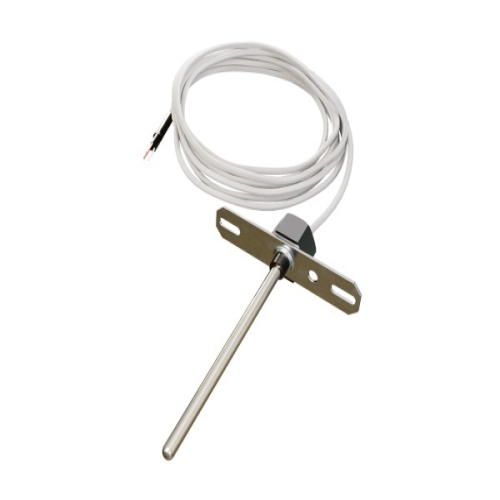

ACI 146937 A/50K-DO-18"-10'CL2P 50K Ohm Duct Thermistor
Normally In Stock
ACI 146937 50,000 Ohm Thermistor, Duct, Without Box, 18", 10' Plenum Cable
Condition: New
Usually ships Same Day or Next Day$39.42
Sale Price
$32.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The plenum rated ACI CL2P cable (shielded) is rated from -40 to 302°F (-40 to 150°C). With an integrated mounted flange, these sensors provide a predictable and accurate output over the specified temperature range. Each sensor is double encapsulated and manufactured for long-term quality.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Mounting
Duct
(Instrument-Sensor) Type
50K Ohm
Features
The ACI Thermistor Duct without Box Series features a stainless steel probe with two 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and increased response times using our high quality, thermally conductive epoxy
The duct style sensor is designed to be used in smaller duct applications and includes an insulation pad for sealing your duct as well as to dampen vibration
For best results, the sensor length should be determined by the actual width or diameter of your duct such that the tip of the probe is in the approximate center of the duct
On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control
The Duct without Box Series can be ordered with optional plenum rated cables and NIST Certificates.
