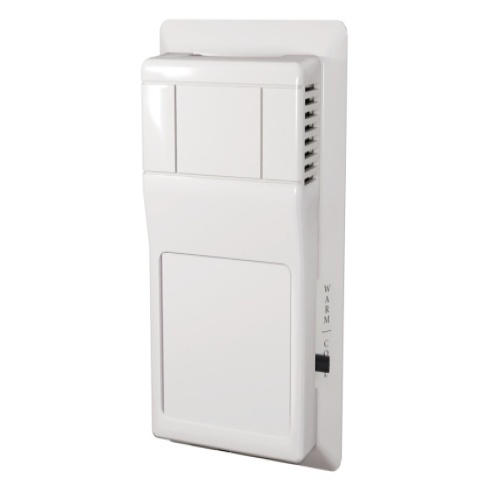

ACI 146876 A/RH2-CP-RS-A03-C5 Relative Humidity Sensor
Normally In Stock
Code: 178703
ACI 146876 A/RH2-CP-RS-A03-C5 Relative Humidity Sensor
Condition: New
Usually ships Same Day or Next Day$243.43
Sale Price
$202.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Room (R), ± 2% Accuracy, 10,000 Ohm Thermistor (Type II), Setpoint 0 to 10K Ohms, Cool/Warm Sticker
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
2%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Output Signal Range
0-10 VDC
(Instrument-Sensor) Output Signal Range
0-5 VDC
Features
The ACI Relative Humidity with Thermistor Room Series utilizes a thermoset polymer capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture resistance
The sensing elements multilayer construction also provides excellent resistance in applications where dust, dirt, oils and common environmental chemicals are found
The RH room sensors include on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources
Single point field calibration can be performed by using the increment and decrement calibration DIP switches to adjust your curve up or down in +/- 0.5% increments with each toggle of the corresponding switches
These enhancements provide increased flexibility and outstanding long-term reliability without the need to replace the sensors in the field
There are two enclosure options in this series which should satisfy most commercial decors
Both enclosures feature four-way airflow to minimize self-heating
Three point NIST Calibration Certificates are available.
