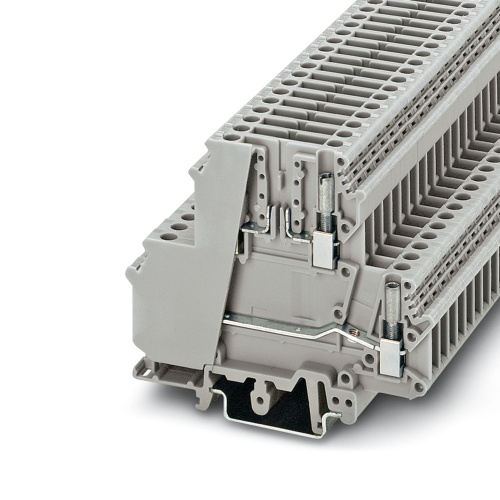

Phoenix Contact 3007042 Disconnect terminal block UKK 5-TG
Normally In Stock
Code: 1785
UKK 5-TG Phoenix Contact 3007042 Phoenix Contact UKK 5-TG, Double Level Gray Removable Disconnect Fuse-Terminal Block Base 6.2mm Single through screw connection to use with Plug-ins sold seperately, 400V, 26A, 12-24AWG (Sold in packs of 50). Not Bridgeable
Condition: New
Usually Ships Same day or Next Day$19.32
Sale Price
$16.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3007042 The terminal block specifications include a nominal voltage of 400V and a nominal current of 26A, connected using a screw method with rated cross sections ranging from 0.2mm² to 4mm², and is mounted on the NS 35/7.5, NS 35/15, or NS 32 standards, available in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
26 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Disconnect Terminal Block
Features
Design width of just 6.2 mm
Downloads
Phoenix 3007042 CAD data International.dxfPhoenix 3007042 CAD data International.pdfPhoenix 3007042 CAD data International.stpPhoenix 3007042 CAD Drawing.zipPhoenix 3007042 Manufacturers declaration English.pdfPhoenix 3007042 Manufacturers declaration International.pdfPhoenix 3007042 Safety note English.pdfPhoenix 3007042 Spec Sheet.pdfPhoenix 3007042 Tender Text English.zip
