ACI 144806 A/RH3-TTM1K-RP2-20'-4X-4 Humidity
Normally In Stock
Code: 178340

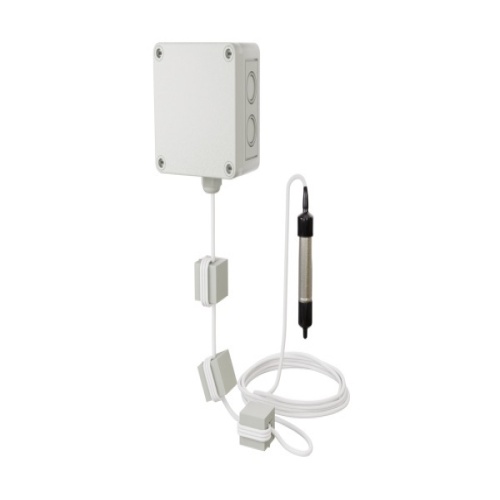

ACI 144806 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, 20' Plenum, NEMA 4X Enclosure, ± 3% Accuracy (NIST Cert), Transmitter w/ 1,000 Ohm RTD (NIST Cert), 4-20mA (Temp Output)
Condition: New
Backordered with 10-12 week lead time$601.27
Sale Price
$501.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Relative Humidity with Temperature Transmitter Series Remote Probe utilizes a thermoset polymer capacitive sensing element with a hydrophobic filter to deliver a proportional relative humidity analog output and can also be configured with any resistive temperature sensor such as a thermistor or RTD. The remote probe wiring harness comes in lengths of 3, 6, 10, or 20 feet to provide mounting flexibility for your remote sensing applications. Single point field calibration can be done on the humidity transmitter, by using the increment and decrement dip switches. Each toggle of the increment and decrement switches will allow for a ±0.5% RH increase or decrease. Calibration of the RH transmitters electronics can also be done using both the Zero and Span potentiometers depending on whether it is a current or voltage output device. All models feature conformally coated circuit boards to improve the reliability of the product in both high moisture and mildly corrosive atmospheres. The standard enclosure is an IP66/NEMA 4X rated moisture and corrosion resistant enclosure. A vinyl cap is provided to place over the sintered filter in applications in wash down applications to protect the sensing element from
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
Features
The ACI Relative Humidity with Temperature Transmitter Series Remote Probe utilizes a thermoset polymer capacitive sensing element with a hydrophobic filter to deliver a proportional relative humidity analog output and can also be configured with any resistive temperature sensor such as a thermistor or RTD
The remote probe wiring harness comes in lengths of 0.91 m (3 ft), 1.83 m (6 ft), 3.048 m (10 ft), or 6.096 m (20 ft) to provide mounting flexibility for your remote sensing applications
Single point field calibration can be done on the humidity transmitter, by using the increment and decrement dip switches
Each toggle of the increment and decrement switches will allow for a ±0.5 % RH increase or decrease
Calibration of the RH transmitters electronics can also be done using both the Zero and Span potentiometers depending on whether it is a current or voltage output device
All models feature conformally coated circuit boards to improve the reliability of the product in both high moisture and mildly corrosive atmospheres
The standard enclosure is an IP66/NEMA 4X rated moisture and corrosion resistant enclosure
A vinyl cap is provided to place over the sintered filter in applications in wash down applications to protect the sensing element from getting moisture sprayed directly on the sensor
NIST Calibration Certificates (Temperature and RH) are included for all TTM RH part series
