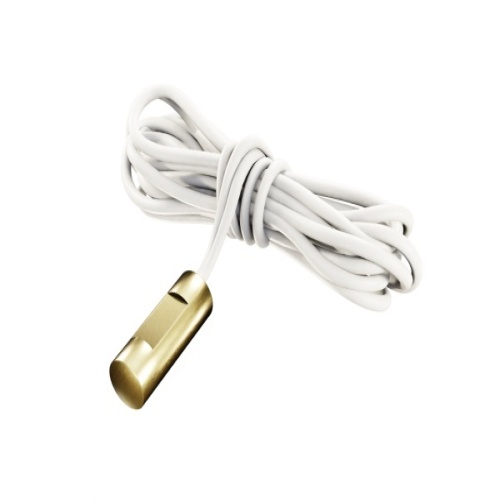

ACI 138644 A/1.8K-PM 1.8K Ohm Pipe Mount Thermistor
Normally In Stock
Code: 177110
ACI 138644 1,800 Ohm Thermistor, Pipe Mount, Brass
Condition: New
Usually ships Same Day or Next Day$25.92
Sale Price
$21.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Pipe Mount probe is specially designed to fit pipe contours of 1” diameter or less. The unique shape of the probe allows for a strap to securely install the sensor to against a pipe. In addition, the convex contour aids in the temperature transfer, allowing for a more accurate signal.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
1.8K Ohm
(Instrument-Sensor) Mounting
Pipe Mount
Features

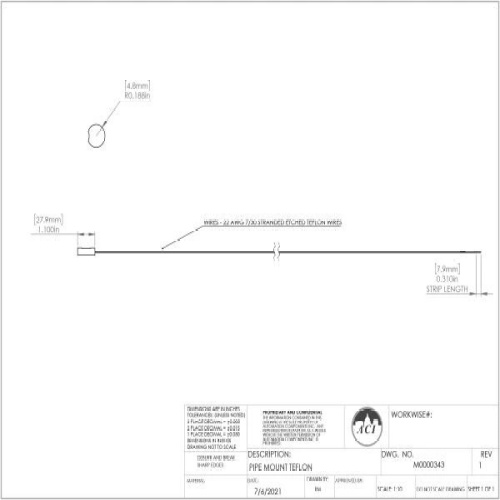

The ACI Thermistor Pipe Mount Series features a 1.1” long Brass probe with a small curvature on the bottom that is designed to increase the surface area and improve the thermal conductivity between the pipe and the sensor
Each sensor has two, 24 inch 22 AWG Etched Te on colored lead wires to di erentiate the many di erent sensor types
All sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the e ects of moisture upon the sensors and to improve the thermal response times using our high quality, thermally conductive epoxy
The Pipe Mount sensor should be used to monitor pipe or coil sizes from 1/2” to 1” in diameter
A 7.5” nylon wire tie is supplied for fastening the sensor to the top of the pipe
For best accuracy and increased thermal conduction between the pipe and sensor, ACI recommends to clean the pipe and to apply thermal grease between the sensor and pipe before securely fastening to the pipe and insulating the sensor from any e ects of the ambient air
An optional Plenum rated cable, Zip wire or NIST Certicate are available as referenced in the ordering grid on the back of the Product Data Sheet.
