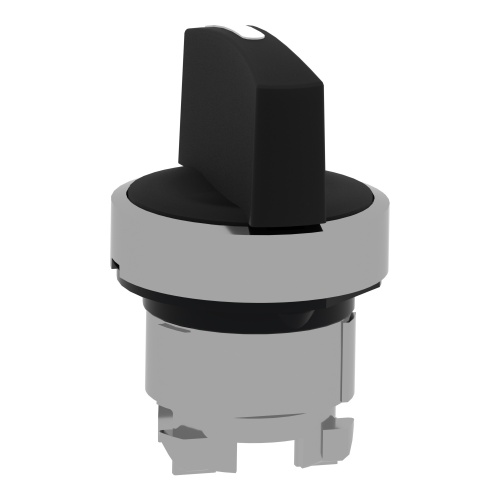

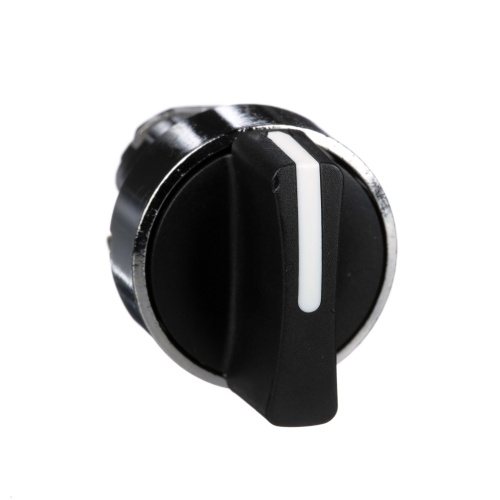

Schneider Electric ZB4BD3 Selector Switch 22mm Lever 3 Position Black
Normally In Stock
Code: 17696
Schneider Electric ZB4BD3 Selector Switch 22mm, Standard Lever, 3 Position, Round Black, Non-illuminated, Metal, Maintained Operation Type. Contact Blocks and Mounting Collar sold Separately. Square D ZB4BD3 or Telemecanique ZB4BD3.
Condition: New
Usually ships Same Day or Next Day$28.87
Sale Price
$24.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric ZB4BD3 Selector Switch 22mm, Body Only, Standard Lever, 3 Position, Round Black, Non-illuminated, Metal, Maintained Operation Type, Body Only, Contact Block Sold Separately, with maximum of 6 contact blocks, UL approved, Nema 1,2,3,4,4x,13, IP66 approved.
Specifications
(Switching-Indication) Positions
3 Positions
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Color
Black
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Operation
Maintained
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Composition
Metal
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Head & Handle
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
