Code: 176823
ACI 137246 A/SYPHON-90-H
Normally In Stock
ACI 137246 Syphon, ¼” MNPT, 90°, Schedule 80, 316 SS
Condition: New
Usually ships Same Day or Next Day$77.18
Sale Price
$64.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The A/SYPHON Series has been designed to provide protection for the ACI Gage and Wet to Wet Differential Pressure transmitters from damage in boiler applications where the operating temperature of the steam being monitored is higher than the maximum operating temperature of the pressure transducer. Three different bend configurations of 90º, 180º, and 270º are available in order to allow the mounting of the pressure transducer vertically away from the main pipe. When mounting the Pigtail Syphons, make sure that the syphon is fully exposed to the ambient air and not covered by any pipe insulation. The Pigtail Syphons feature a stainless steel construction with ¼” Male NPT pipe threads and are compatible with a wide range of gases and liquids.
Specifications
Manufacturer
ACI
Component
Syphon
Features
The A/SYPHON Series has been designed to provide protection for the Gage and Wet to Wet Di erential Pressure transmitters from damage in boiler applications where the operating temperature of the steam being monitored is higher than the maximum operating temperature of the pressure transducer

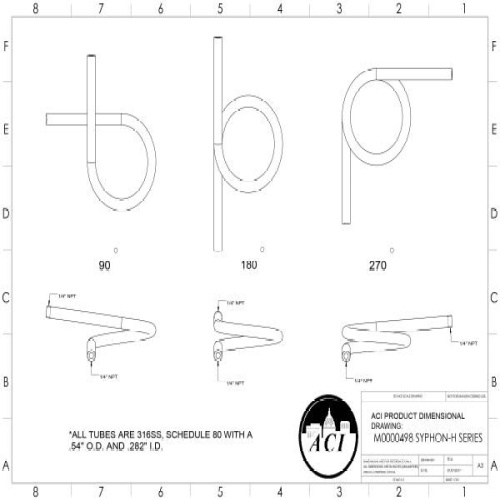

Three di erent bend con gurations of 90º, 180º, and 270º are available to allow the mounting of the pressure transducer vertically away from the main pipe
When mounting the pigtail syphons, make sure that the syphon is fully exposed to the ambient air and not covered by any pipe insulation
The Pigtail Syphons feature a stainless steel construction with ¼” Male NPT pipe threads and are compatible with a wide range of gases and liquids.
