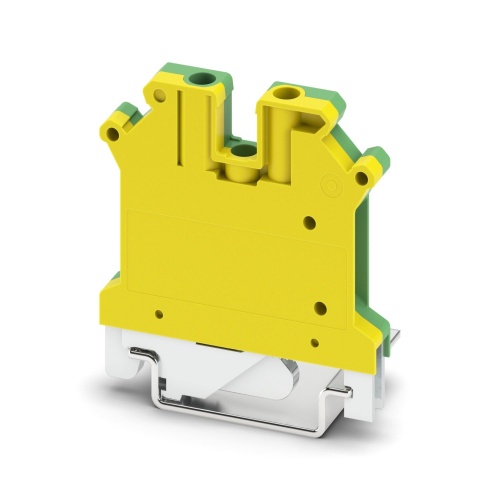

Phoenix Contact 0441504 Protective conductor terminal block USLKG 5
Normally In Stock
Code: 1768
USLKG 5 Phoenix Contact 0441504 Phoenix Contact USLKG 5, Ground Terminal Block 6.2mm Green/Yellow Screw Connection, 10-14AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$11.96
Sale Price
$9.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0441504 For a protective conductor terminal block that matches the shape of a feed-through terminal block, an end cover is required when the voltage exceeds 690V and there are two connections. The connections should be made using screw fittings with a rated cross-section of 4mm², ranging from 0.2mm² to 6mm², and secured by a PE foot mounted with an M3 mounting screw.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
10
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 0441504 CAD data International.dxfPhoenix 0441504 CAD data International.pdfPhoenix 0441504 CAD data International.stpPhoenix 0441504 CAD Drawing.zipPhoenix 0441504 Certification English-2.pdfPhoenix 0441504 Manufacturers declaration English.pdfPhoenix 0441504 Manufacturers declaration International-2.pdfPhoenix 0441504 Manufacturers declaration International-3.pdfPhoenix 0441504 Manufacturers declaration International.pdfPhoenix 0441504 Safety note English.pdfPhoenix 0441504 Spec Sheet.pdfPhoenix 0441504 Tender Text English.zipPhoenix 0441504 User instructions for the Ex Area International.pdf
