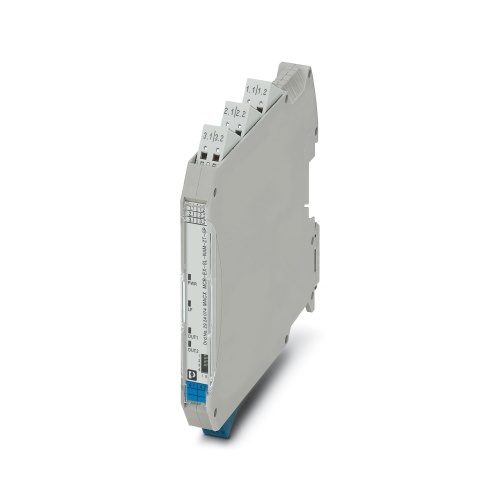

Phoenix Contact 2924074 Isolation switch amplifier MACX MCR-EX-SL-NAM-2T-SP
Normally In Stock
Code: 17651
MACX MCR-EX-SL-NAM-2T-SP Phoenix 2924074 Isolation amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$258.82
Sale Price
$215.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

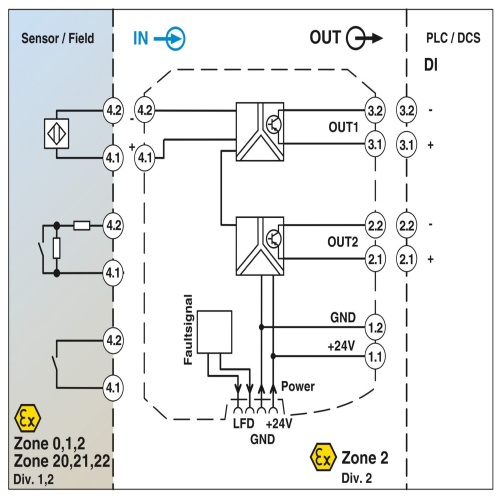

Phoenix Contact 2924074 Ex-iNAMUR isolating amplifiers from NAMUR enable operation of proximity sensors and switches within Ex zones by transmitting signals through two passive transistor outputs into safe areas, while also featuring line fault detection and three-way isolation with a SIL rating of 2.
Specifications
Safety Connection Method
Push-In Connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (Not Assessed By UL)
Sub Component
Isolating Switch Transf.
Manufacturer
Phoenix Contact
Component
Isolation Amplifier
Features
Signal output 2 can also be used as an error signaling output
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply and error indication possible via DIN rail connector
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
Direction of operation can be selected (operating or closed circuit current behavior)
2 transistor signal outputs (passive)
up to 5 kHz
4-way electrical isolation
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
