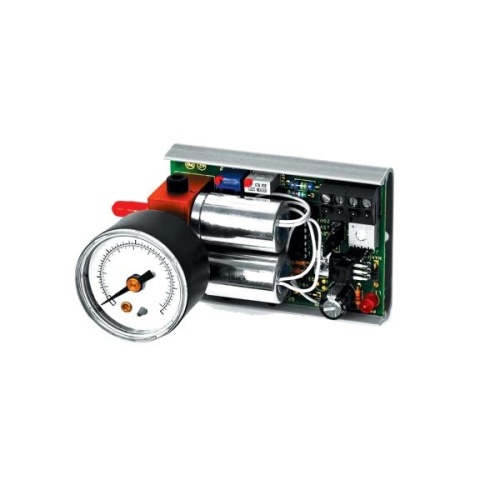

ACI 127214 PXP2.3LG Analog Input
Normally In Stock
Code: 175744
ACI 127214 Analog Input (0-5VDC), Pressure Output (0-15PSI), Dual Valve, Maintains Branch Pressure , High Flow, Gauge, (0-10V, 0-15V, 0-20mA Selectable)
Condition: New
Usually ships Same Day or Next Day$259.92
Sale Price
$216.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The PXP*.3 is an electric to pneumatic transducer which converts an analog electrical input signal to a proportional pneumatic output. The PXP*.3 will automatically modulate its control valve(s) to regulate the branch line pressure to the selected set point as determined by the input signal. The
Specifications
Manufacturer
ACI
Component
Analog Input
Features
The PXP*.3 is an electric to pneumatic transducer which converts an analog electrical input signal to a proportional pneumatic output
The PXP*.3 will automatically modulate its control valve(s) to regulate the branch line pressure to the selected set point as determined by the input signal
The PXP*.3 o ers four selectable input ranges which convert to a 0 to 15 psig modulating output (See EPC product for 0 to 20 psig outputs)
A 0-5 VDC feedback signal indicating the resultant branch line pressure is also provided
This signal varies linearly with branch pressure (0 volts= 0 psig, 5 volts = 15 psig)
The PXP0.3 is a single valve version that does not bleed or exhaust air
Its operation depends on the pneumatic circuit where it is installed to consume between 14 and 73 scim
The PXP1.3, 5.3, and 7.3 are constant bleed controllers with branch exhaust response time determined by the bleed ori ce size and pressure di erentials (see ordering grid on the next page)
If power fails, the PXP1.3, 5.3, or 7.3 will continue to bleed through the bleed ori ce until branch pressure is zero psig
A three-way solenoid valve assembly may be used with the bleed type PXP1.3, 5.3, or 7.3 to allow control to fall back to the original local controller if power fails
The PXP2.3 incorporates two valves and does not use air at set point
It’s branch exhaust ow and response time are not limited by an internal restrictor and are similar to its load rate
If power fails to the PXP2.3, branch line pressure remains constant if the branch line does not leak air
The PXP2.3FS is equipped with a N.O
branch exhaust valve which allows exhaust of branch air on power failure
A manual override (jumper selectable), which controls the output pressure, is provided for setup and troubleshooting
Custom calibration is available upon request for an additional charge
This will speed up installation time for the end user.
