Code: 175103
ACI 122016 A/CP-DO-18"-96"CL2P-QC 10K Ohm,Type II Thermistor
Normally In Stock
ACI 122016 10,000 Ohm Thermistor (Type II), Duct, Without Box, 18", 96" Plenum Cable, Quick Connects
Condition: New
Usually ships Same Day or Next Day$39.42
Sale Price
$32.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The ACI Quick Connect (-QC) Series thermistors provide a predictable output over the specified temperature range of -40 to 302 deg F. These sensors are available in several probe and cable lengths. The sensing element is double encapsulated for long-term durability. These units are offered in a duct without box configuration. They come with a 2 conductor 22 AWG Teflon shielded CL2P Plenum rated cable and ¼" quick connect connectors for ease of installation.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm-Type II
Features

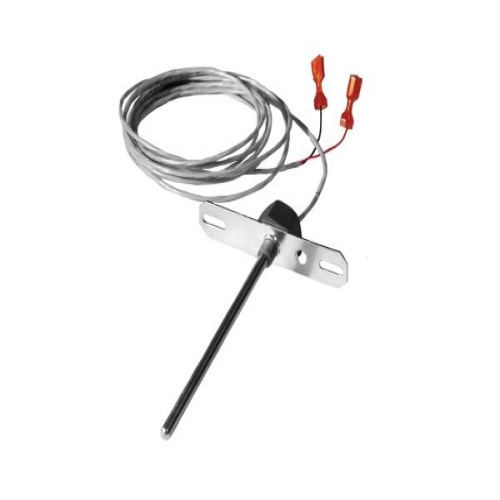

The ACI Thermistor Quick Connect Series features a 1/4" diameter stainless steel probe with a 2 conductor Plenum rated cable and ¼” Female Insulated Spade Connectors (Quick Connects)
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the e ects of moisture upon the sensors as well as increased thermal response times using our high quality, thermally conductive epoxy
The duct style sensor is a single point sensor designed to be used in smaller duct applications and includes an insulation pad for properly sealing your duct as well as to dampen vibration
For best results, the sensor length should be determined by the actual width or diameter of your duct such that the tip of the probe is in the approximate center of the duct
On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control
The Thermistor Quick Connect Series can be ordered with optional plenum rated cables, jacket materials and standard lead lengths
Please contact ACI for more information regarding this sensor or to discuss whether it will meet your specic requirements
