ACI 121340 A/AN-BP-20'CL2P 10K Ohm,Type III,Bullet Probe Thermistor
Normally In Stock
Code: 174956
ACI 121340 10,000 Ohm Thermistor w/11K Shunt, Bullet Probe, 1", 20' Plenum Cable
Condition: New
Usually ships Same Day or Next Day$47.52
Sale Price
$39.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

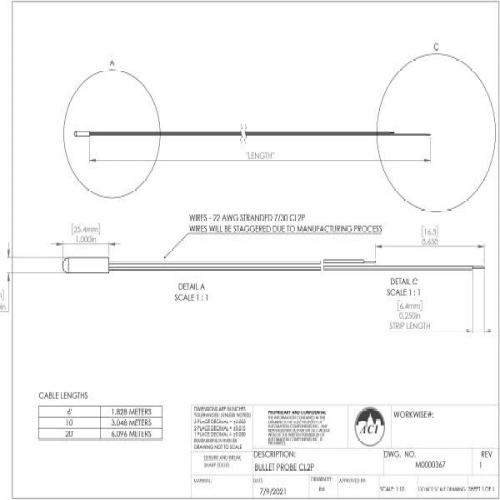

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm-Type III-Bullet Probe
Features
The ACI Thermistor Strap-On Series features a 1.5” square copper plate with the sensor encapsulated to the back side of the plate to improve the thermal conductivity between the pipe and the sensor when an Immersion style sensor can’t be inserted into the pipe
Each sensor has two, 14 inch 22 AWG Etched Te on colored lead wires to dierentiate the dierent sensor types
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture upon the sensors as well as to improve the thermal response times using our high quality, thermally conductive epoxy
The Strap-On Series sensors can be used to monitor pipe sizes from 1 ¼” to 10” in diameter
For best accuracy and increased thermal conduction between the pipe and the sensor, ACI recommends to clean the pipe before applying thermal grease as well as to insulate the sensor from the eects of the ambient air
Optional weather proof enclosure and NIST certi cates are available upon request.
