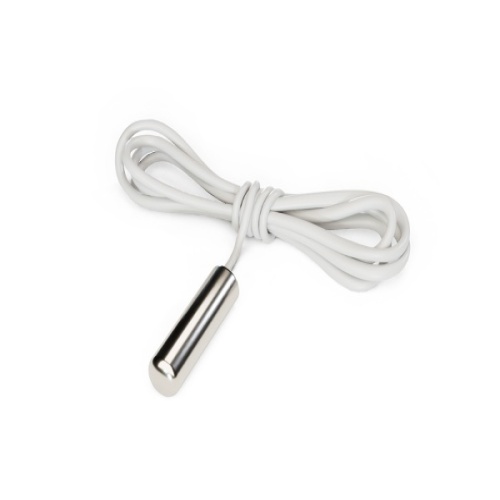

ACI 121336 A/AN-BP 10K Ohm,Type III,Bullet Probe Thermistor
Normally In Stock
Code: 174954
ACI 121336 10,000 Ohm Thermistor (Type III), Bullet Probe
Condition: New
Usually ships Same Day or Next Day$16.74
Sale Price
$13.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

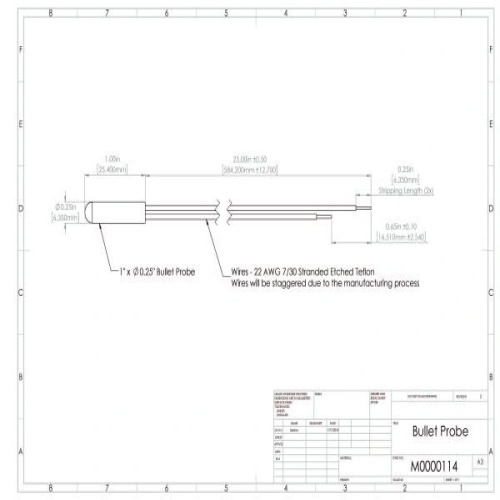

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Specifications
Manufacturer
ACI
Component
Thermistor
(Instrument-Sensor) Type
10K Ohm-Type III-Bullet Probe
Features
The ACI Thermistor Bullet Probe Series features a 25.4 mm (1 in) stainless steel probe with two, 61 cm (24 in), 0.65 mm (22 AWG) Etched Teflon colored lead wires to differentiate the different NTC sensor types
The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy
The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water
This series can be ordered with different wire options and NIST certificates.
